Stay
TYPE｜Private Residense Project/ Design for an Architect and His Wife
LOCATION｜Tainan, Taiwan
SEASON｜2023 Spring
PROJECT｜NCKU ARCH Y2 Design

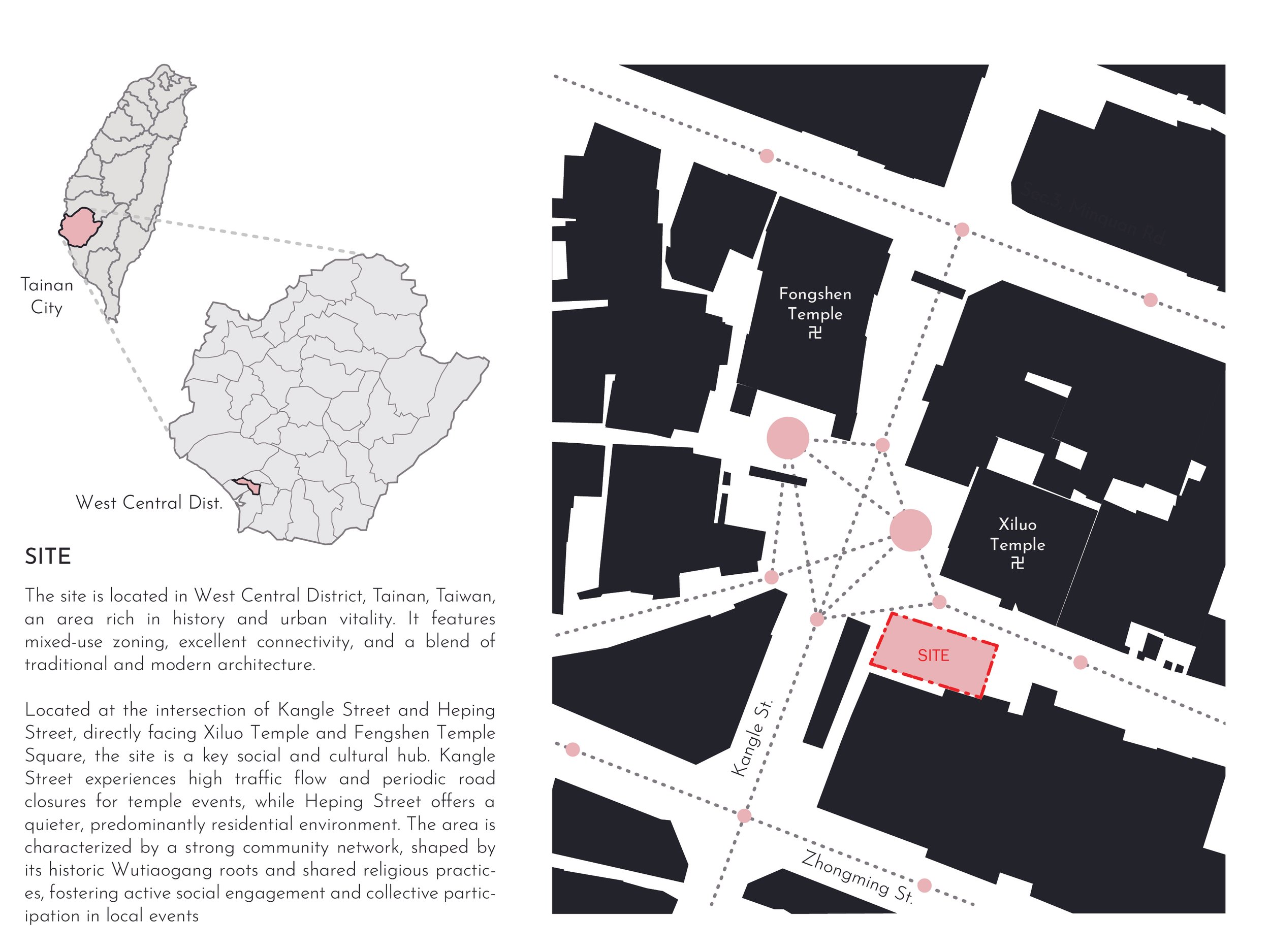

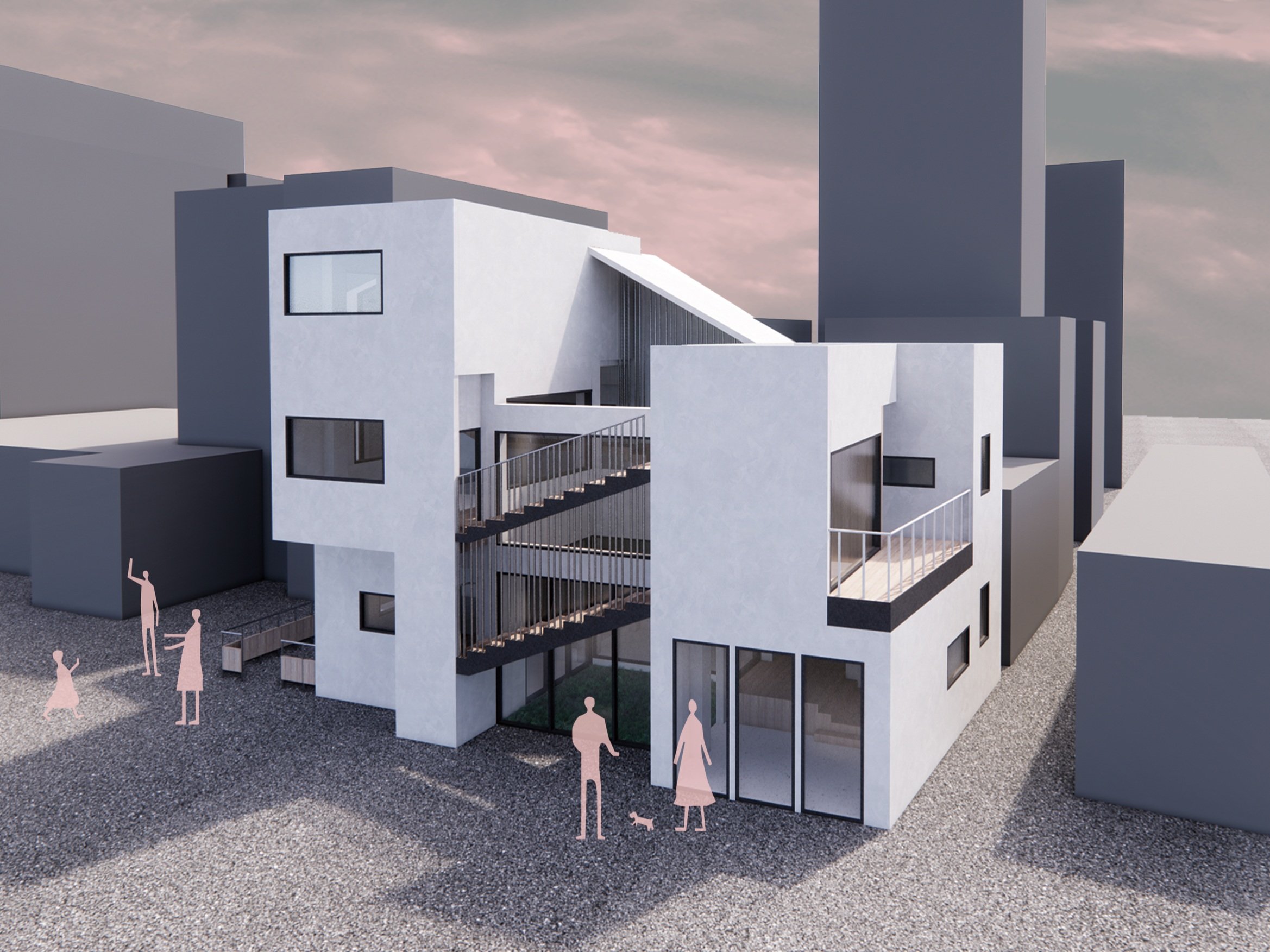

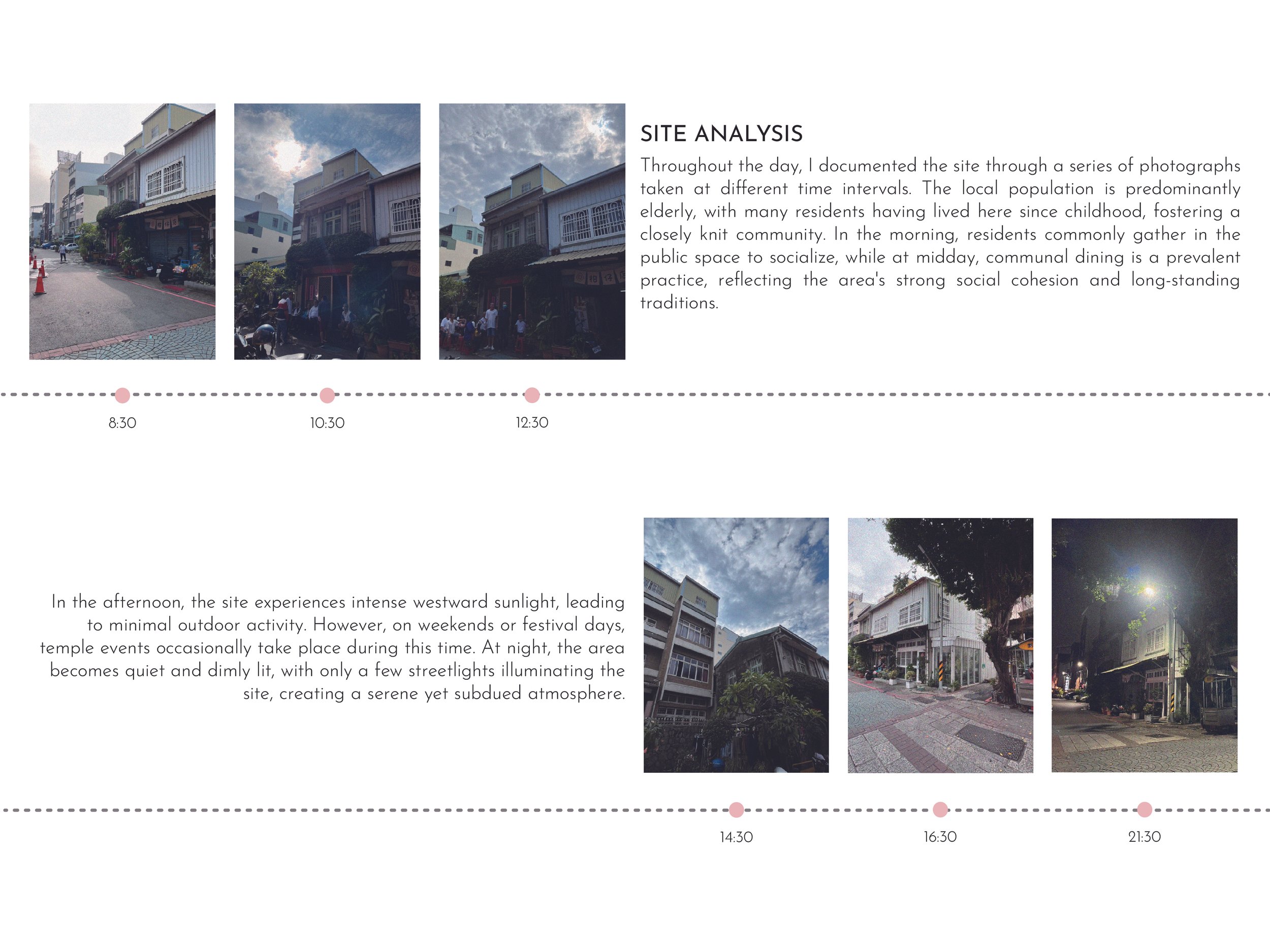

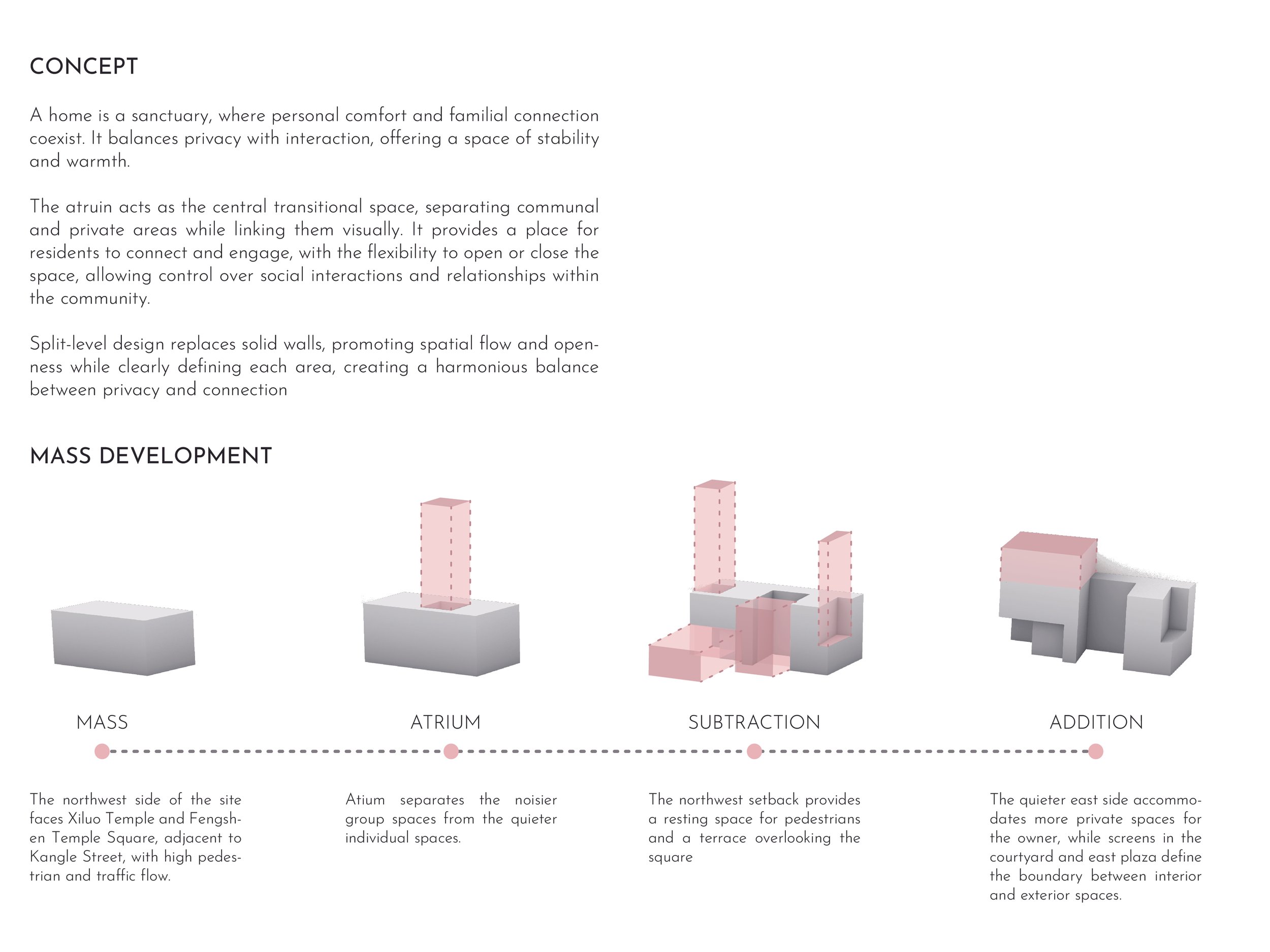

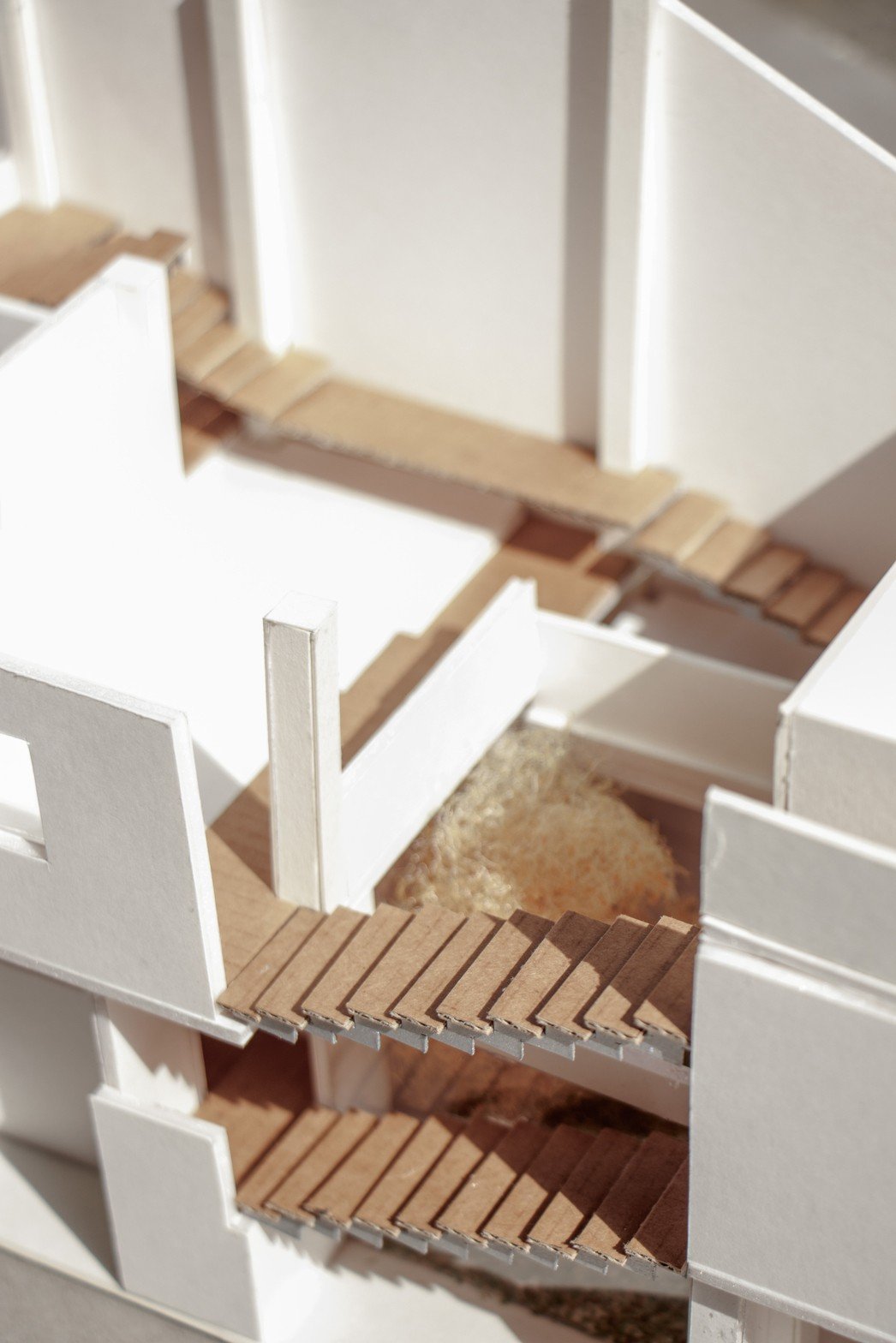

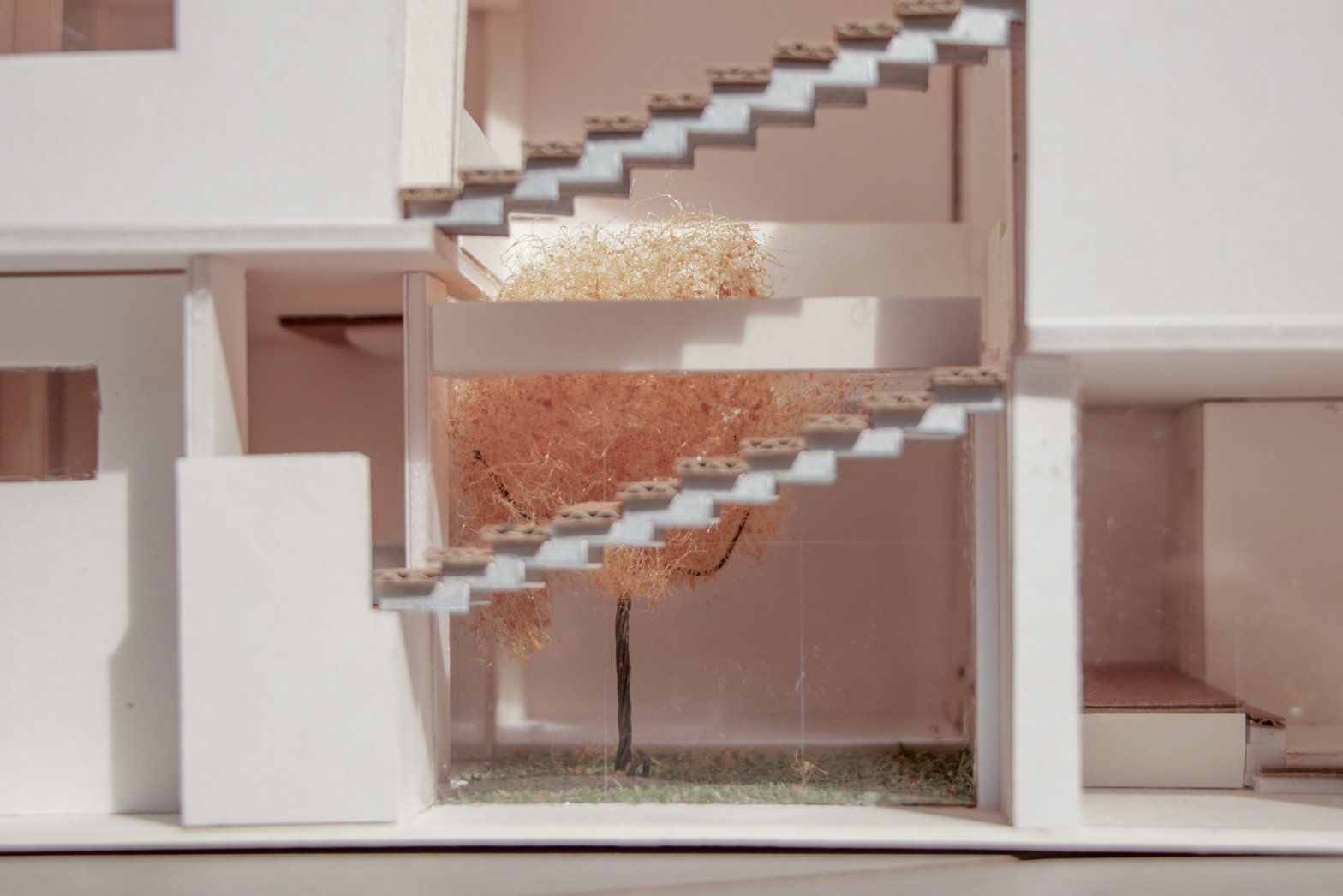

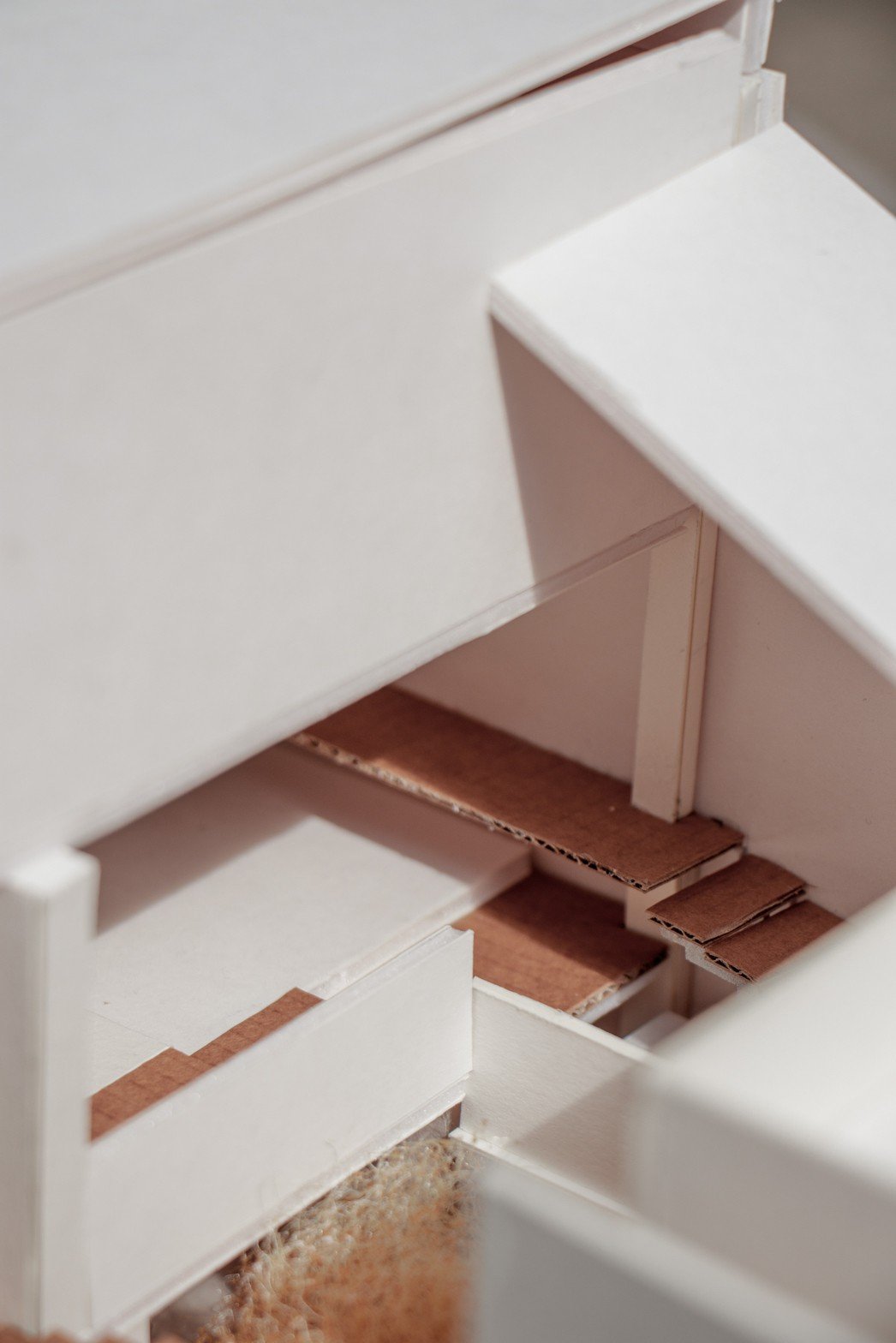

CONCEPT｜Atruin/ Balancee of privacy and social connection

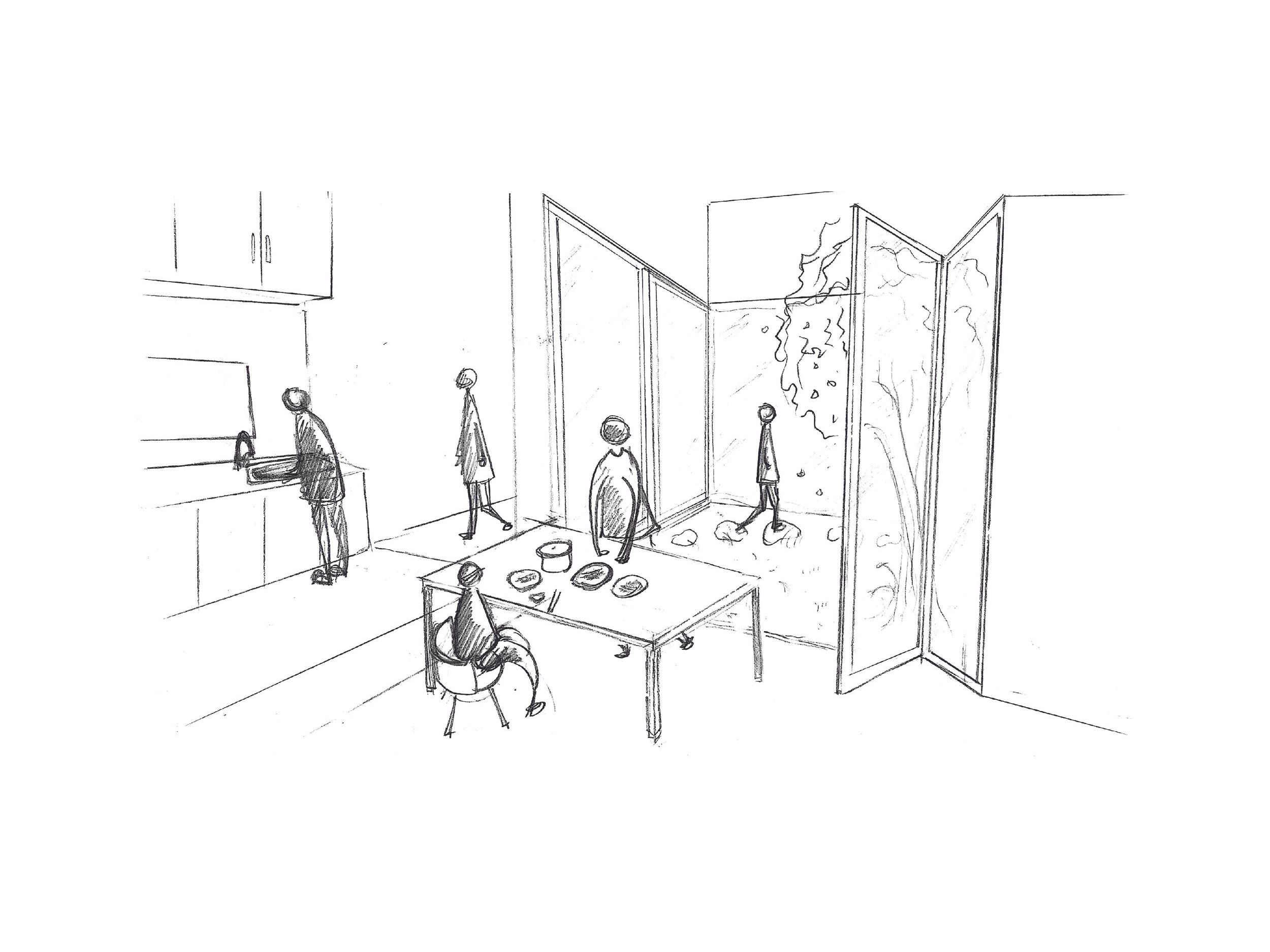

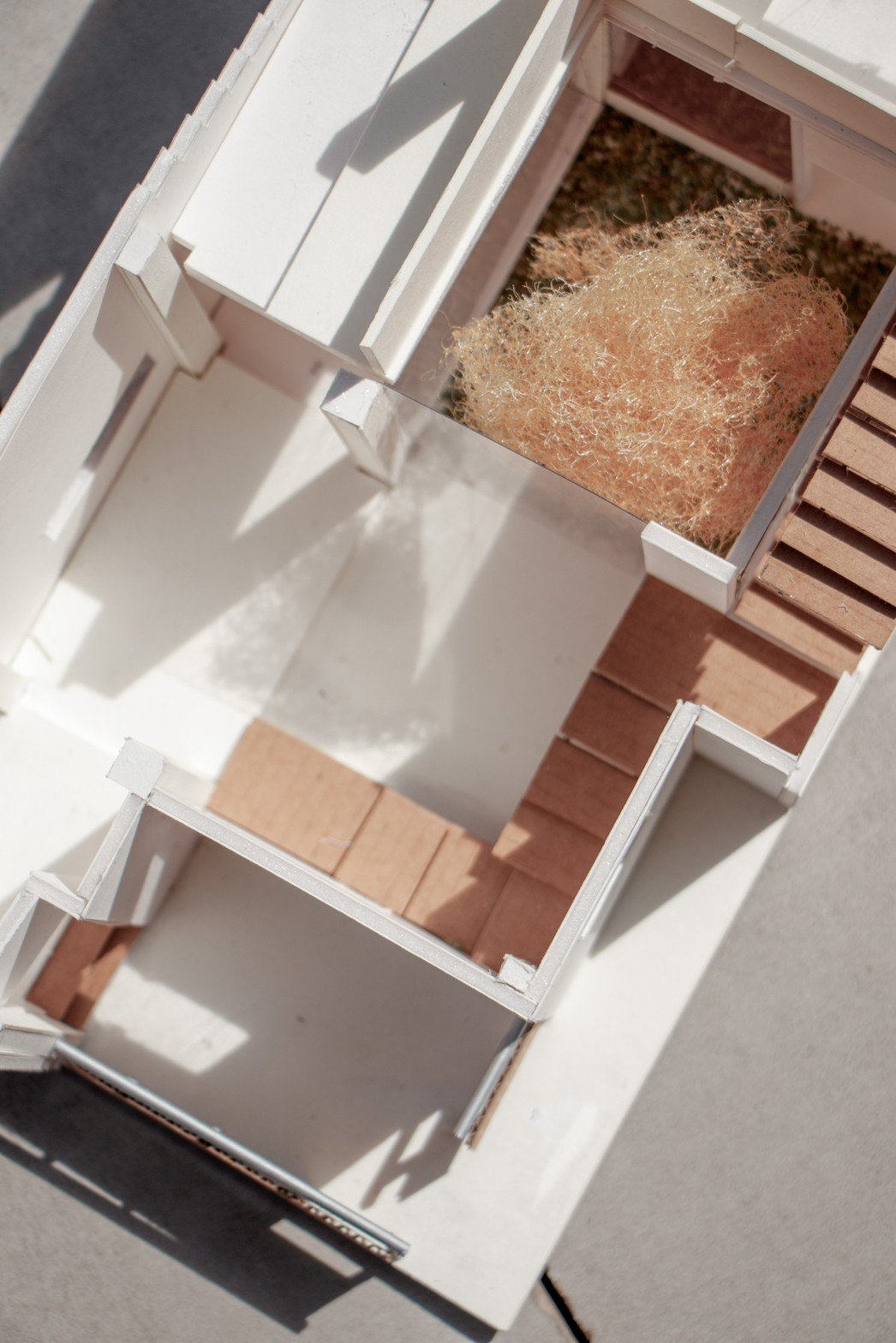

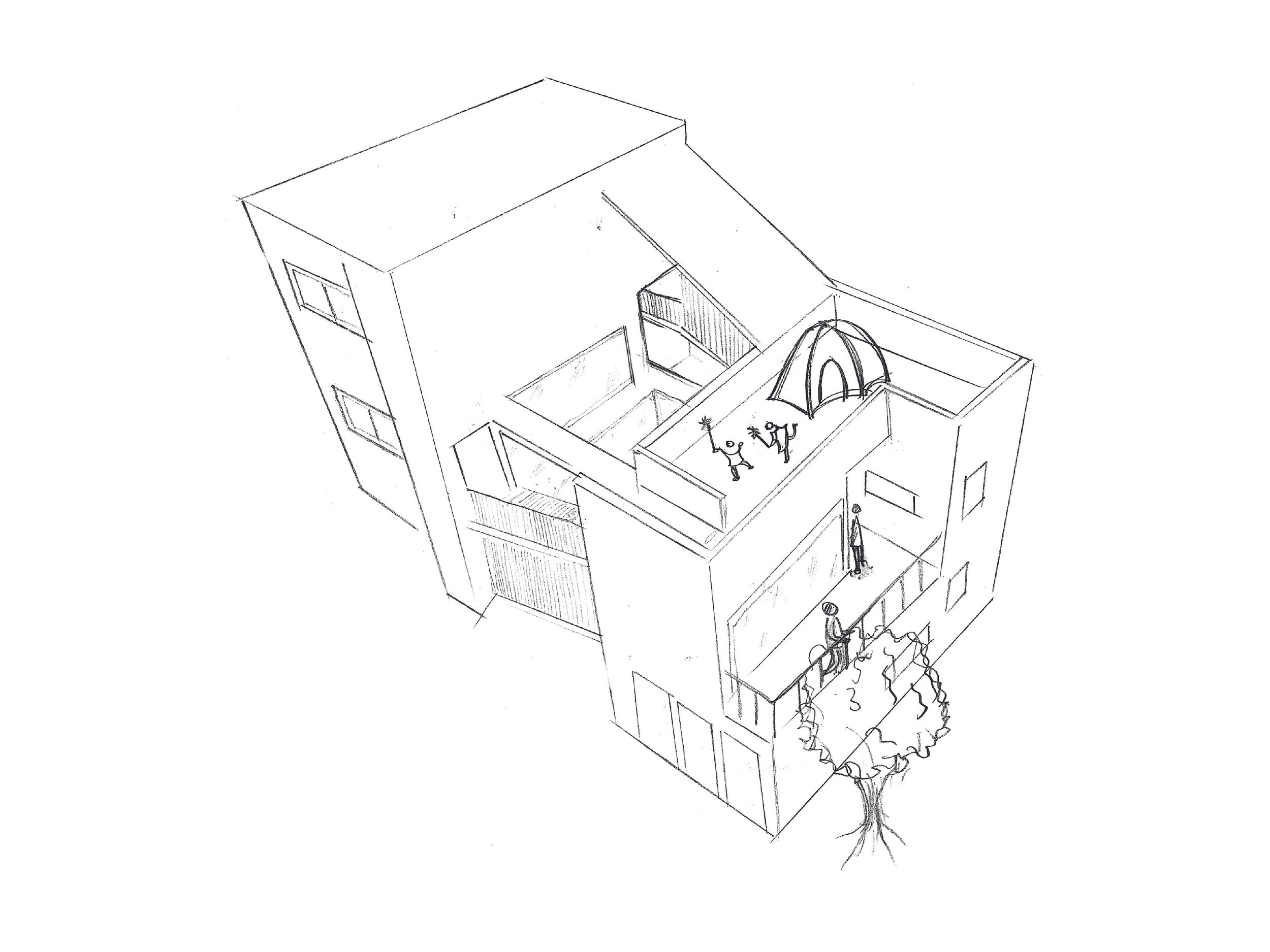

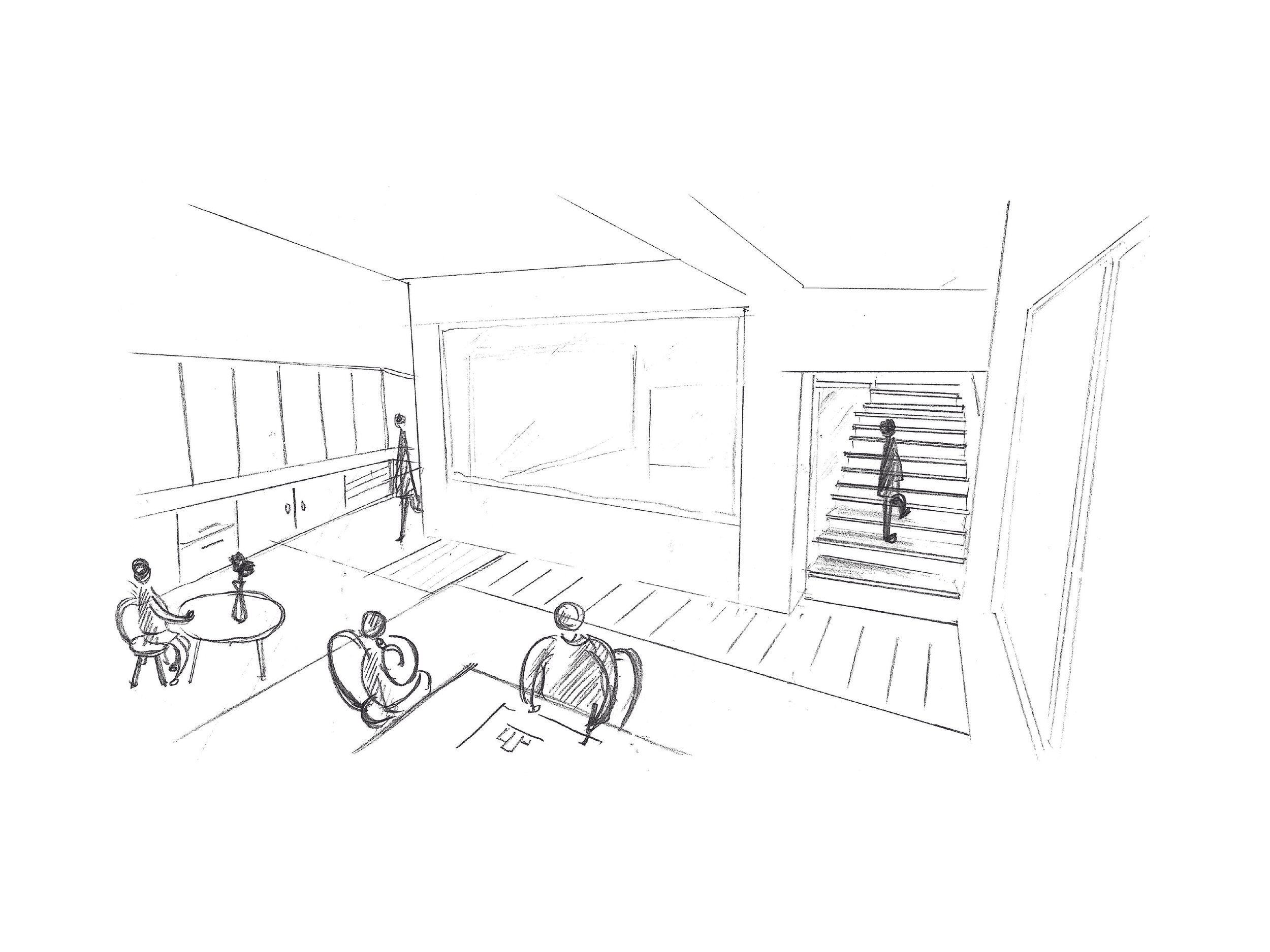

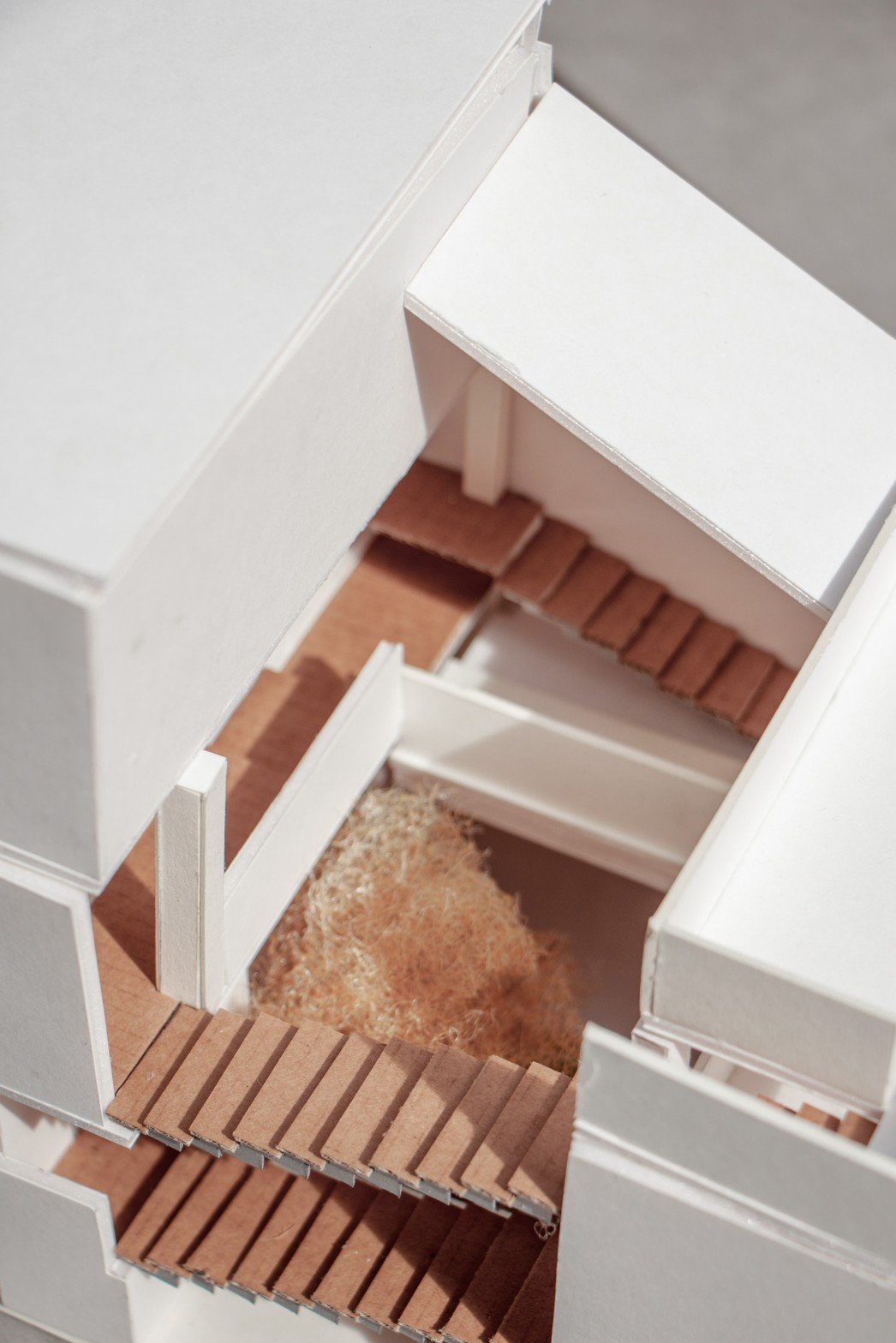

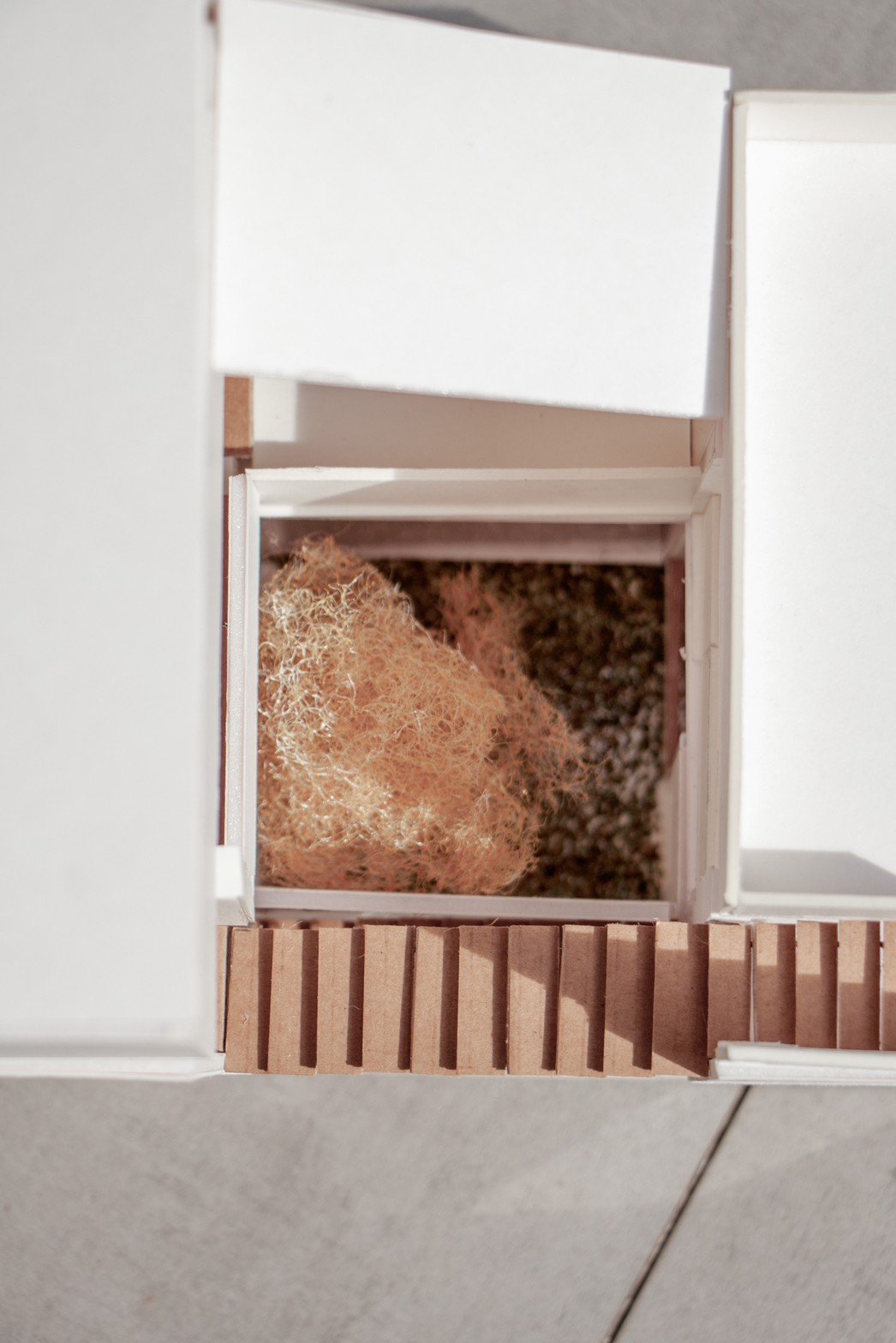

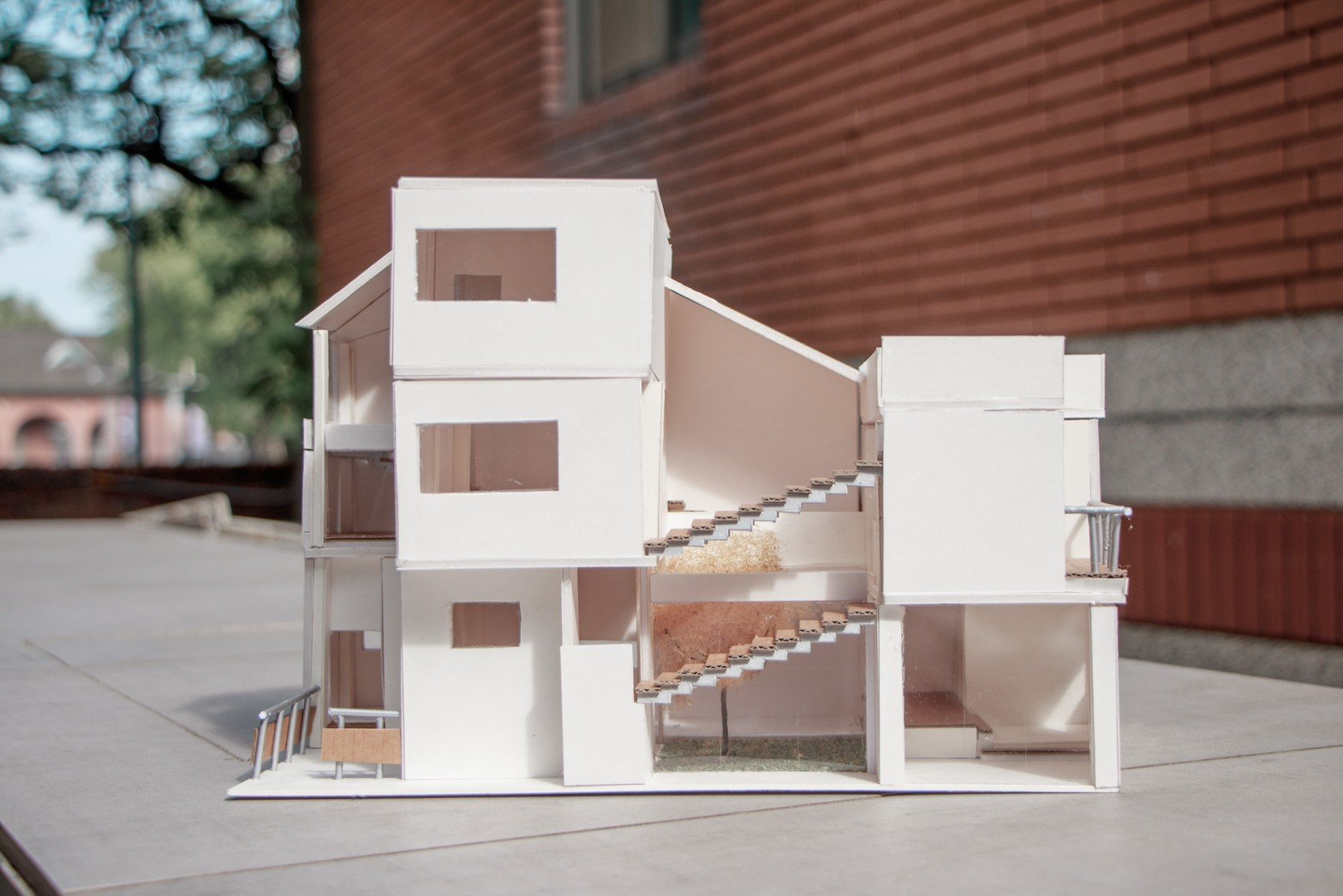

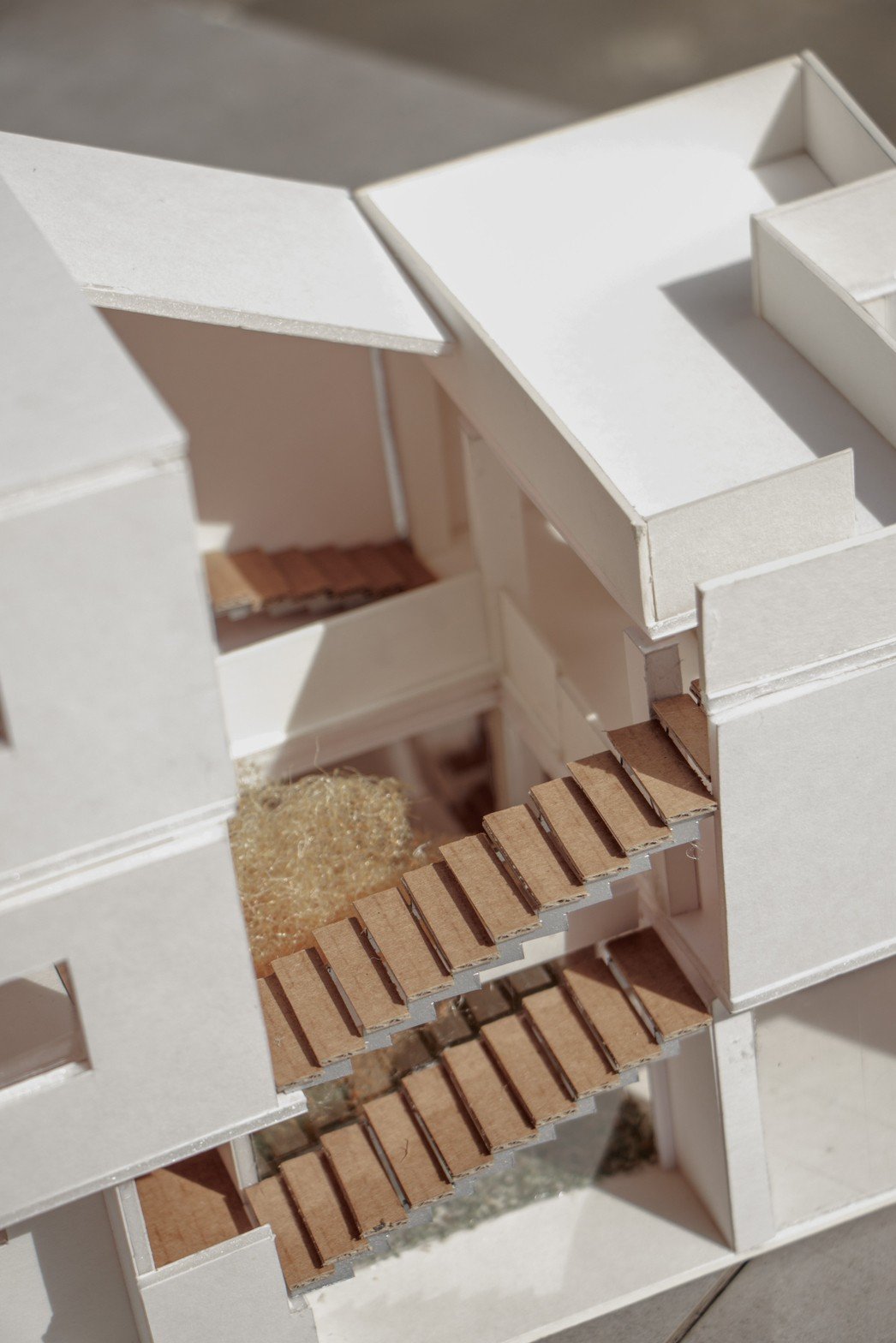

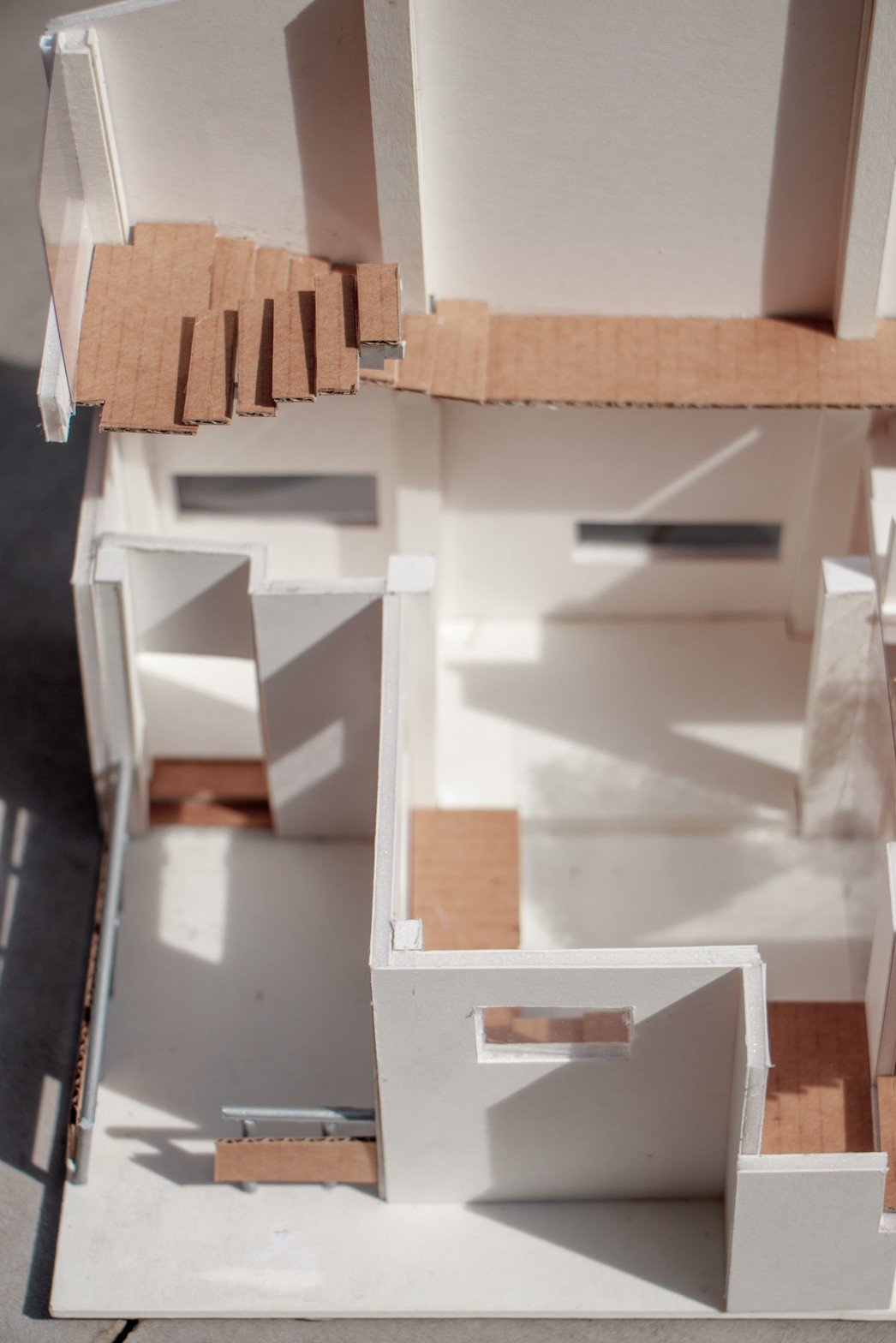

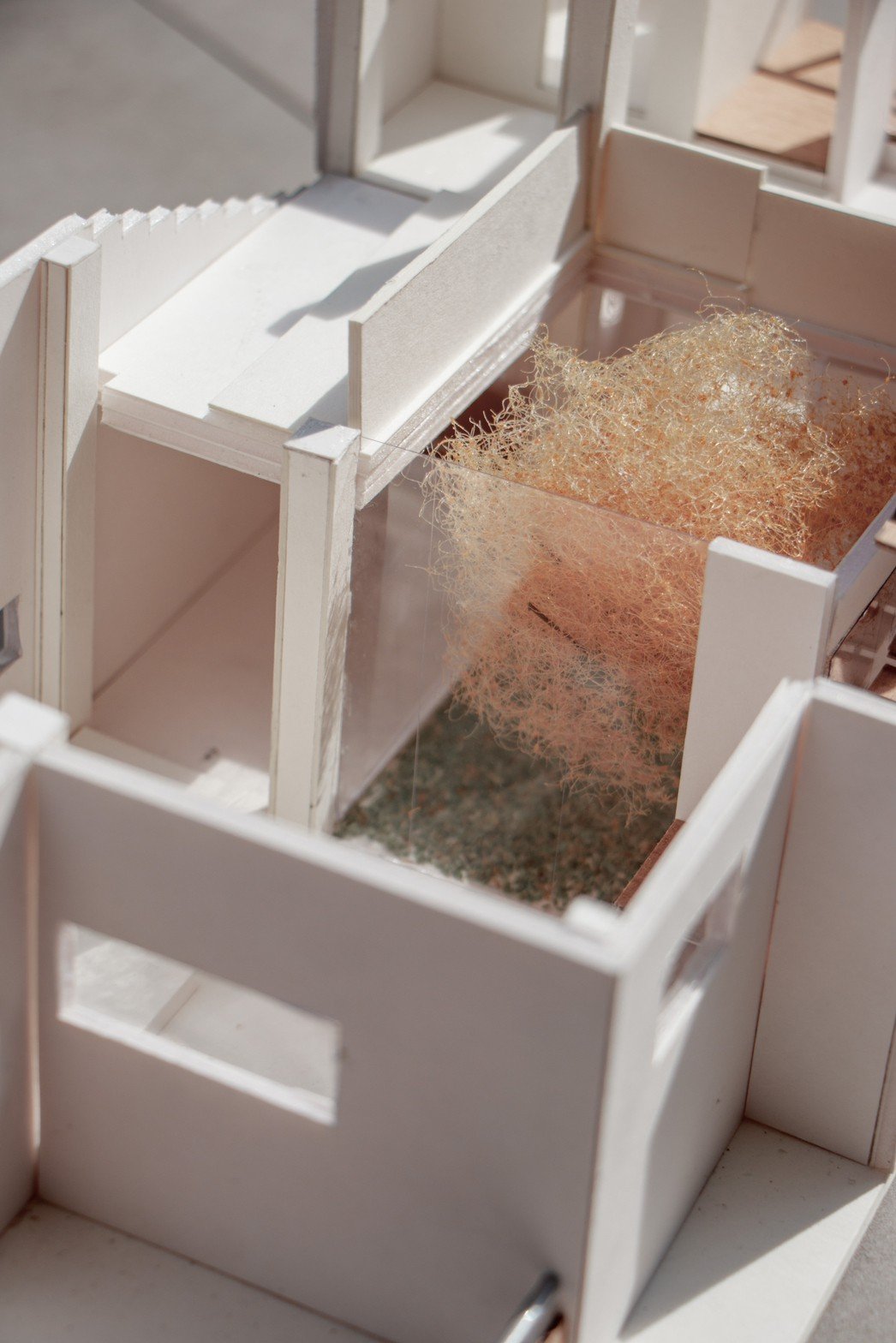

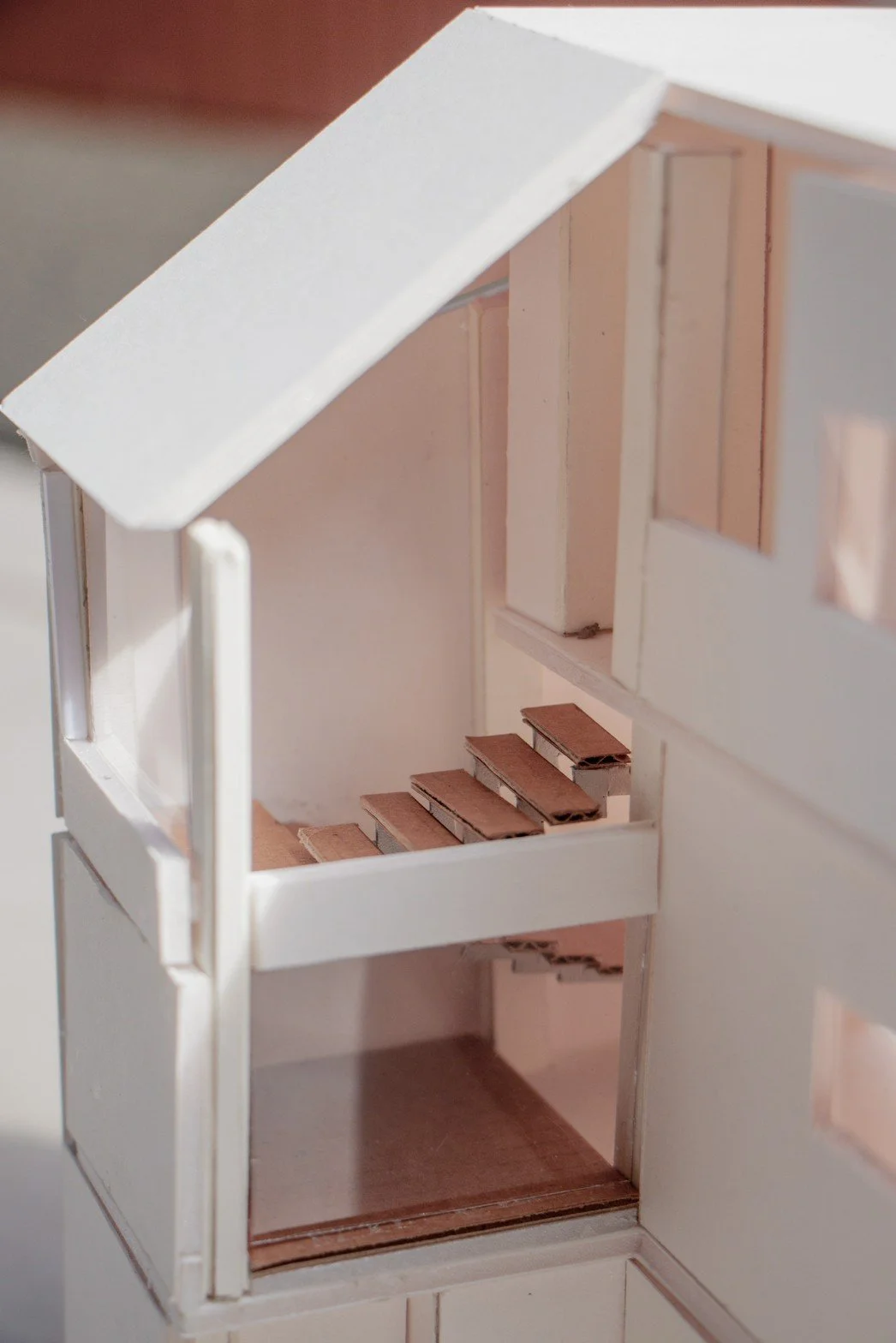

METHOD｜Physical Model/ Concept Model/ Sketch/ Rhino/ Enscape/ Photoshop/ Illustrator

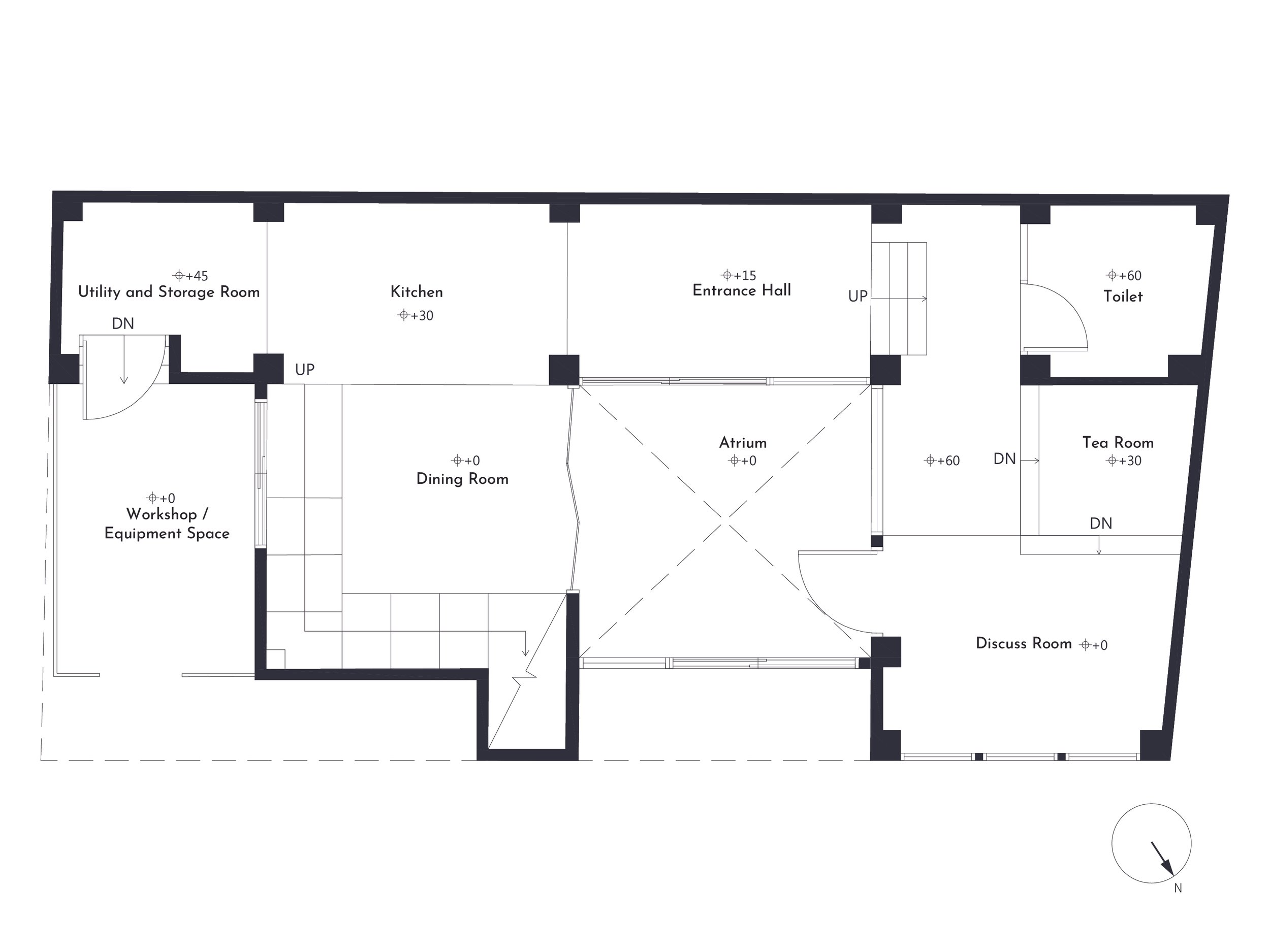

1/60 1F PLAN

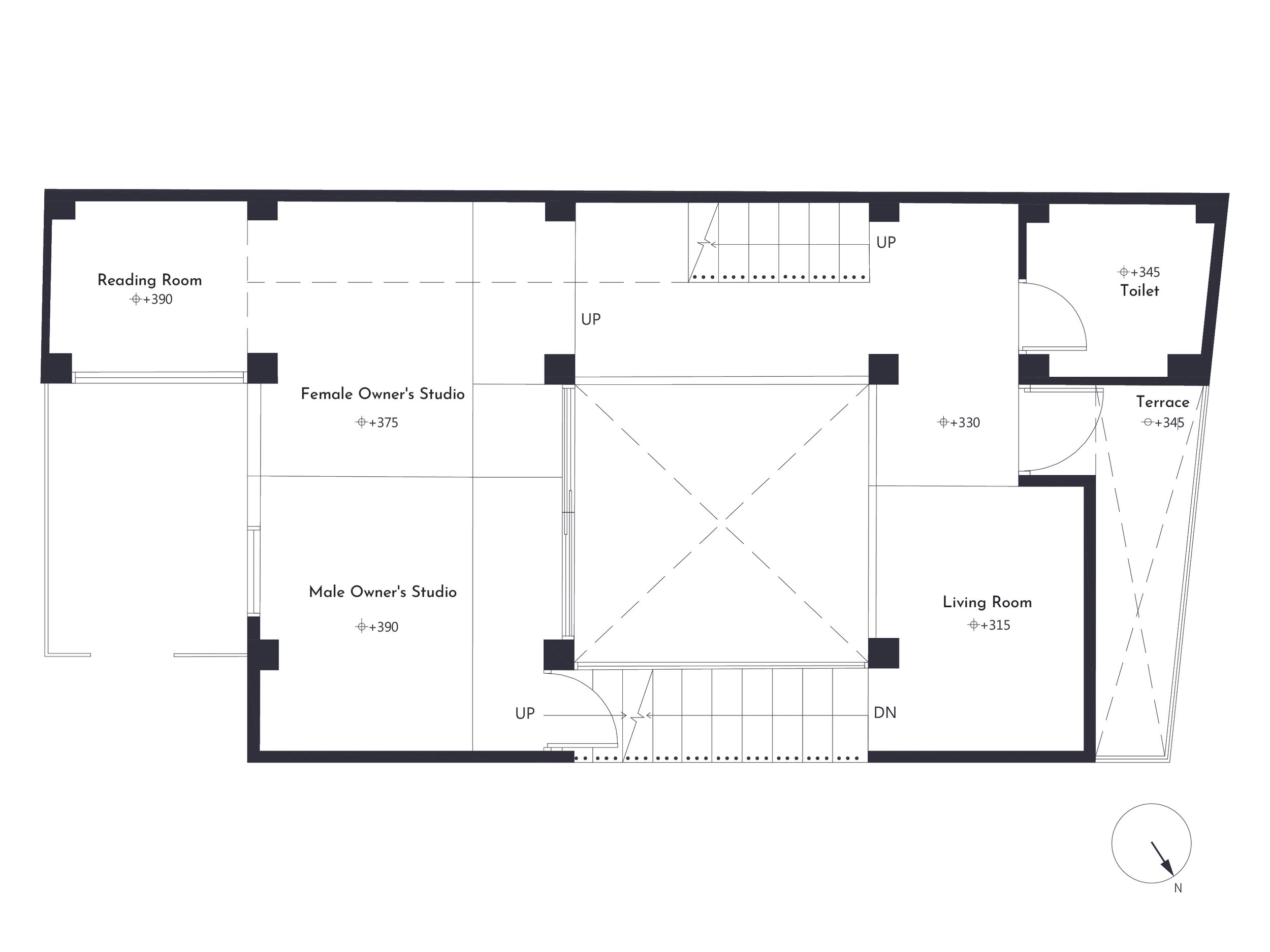

1/60 2F PLAN

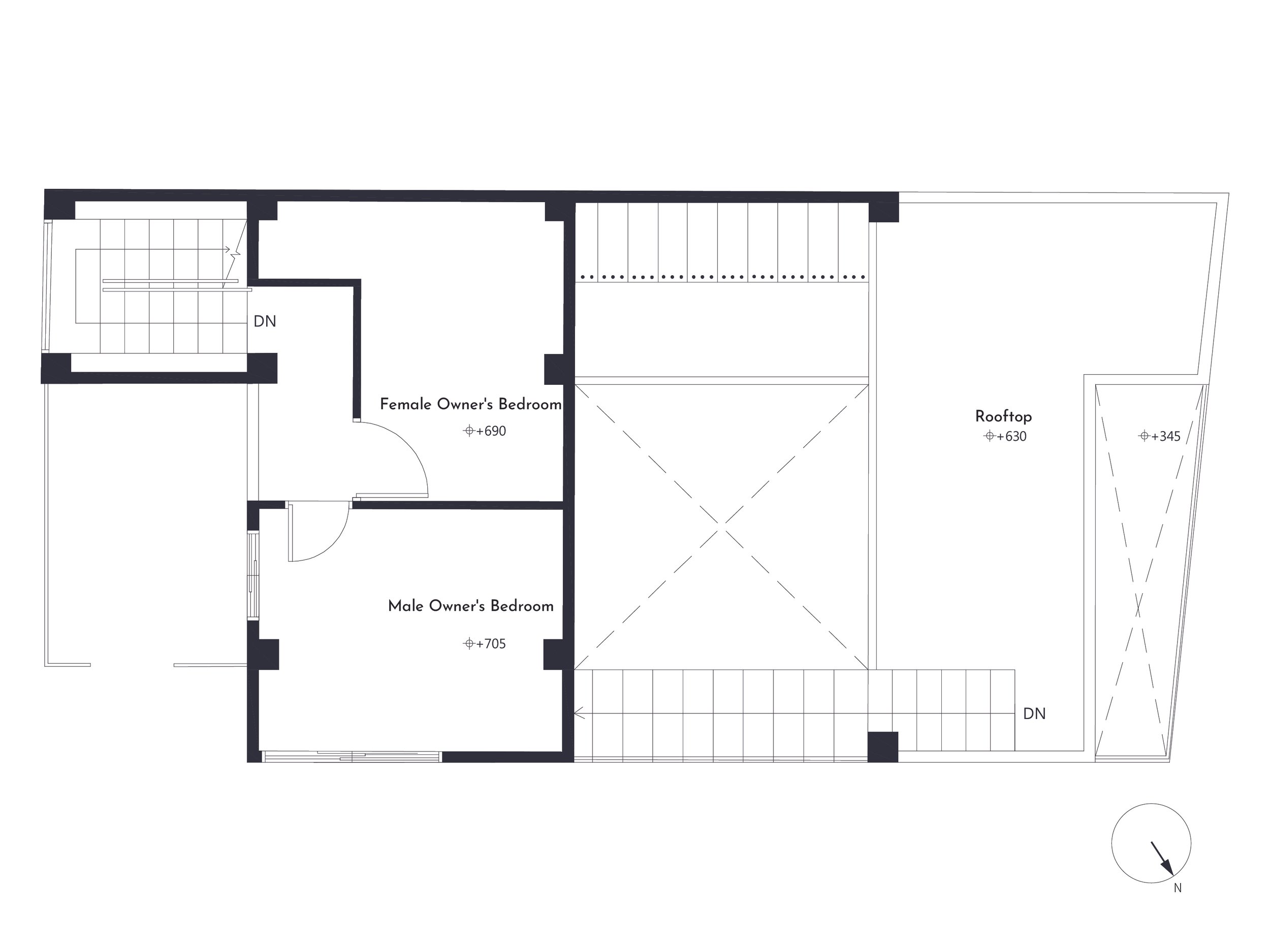

1/60 3F PLAN

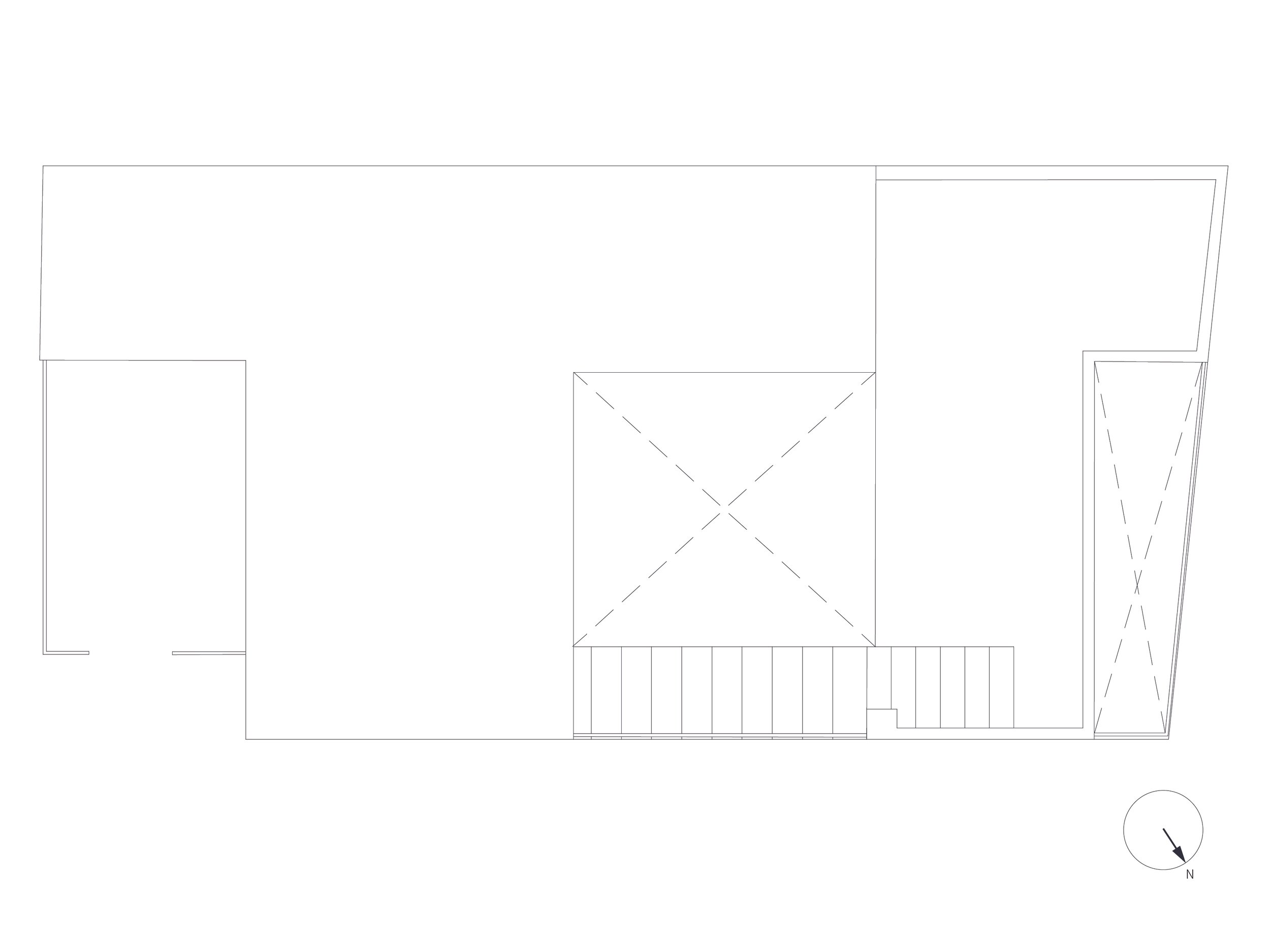

1/60 RF PLAN

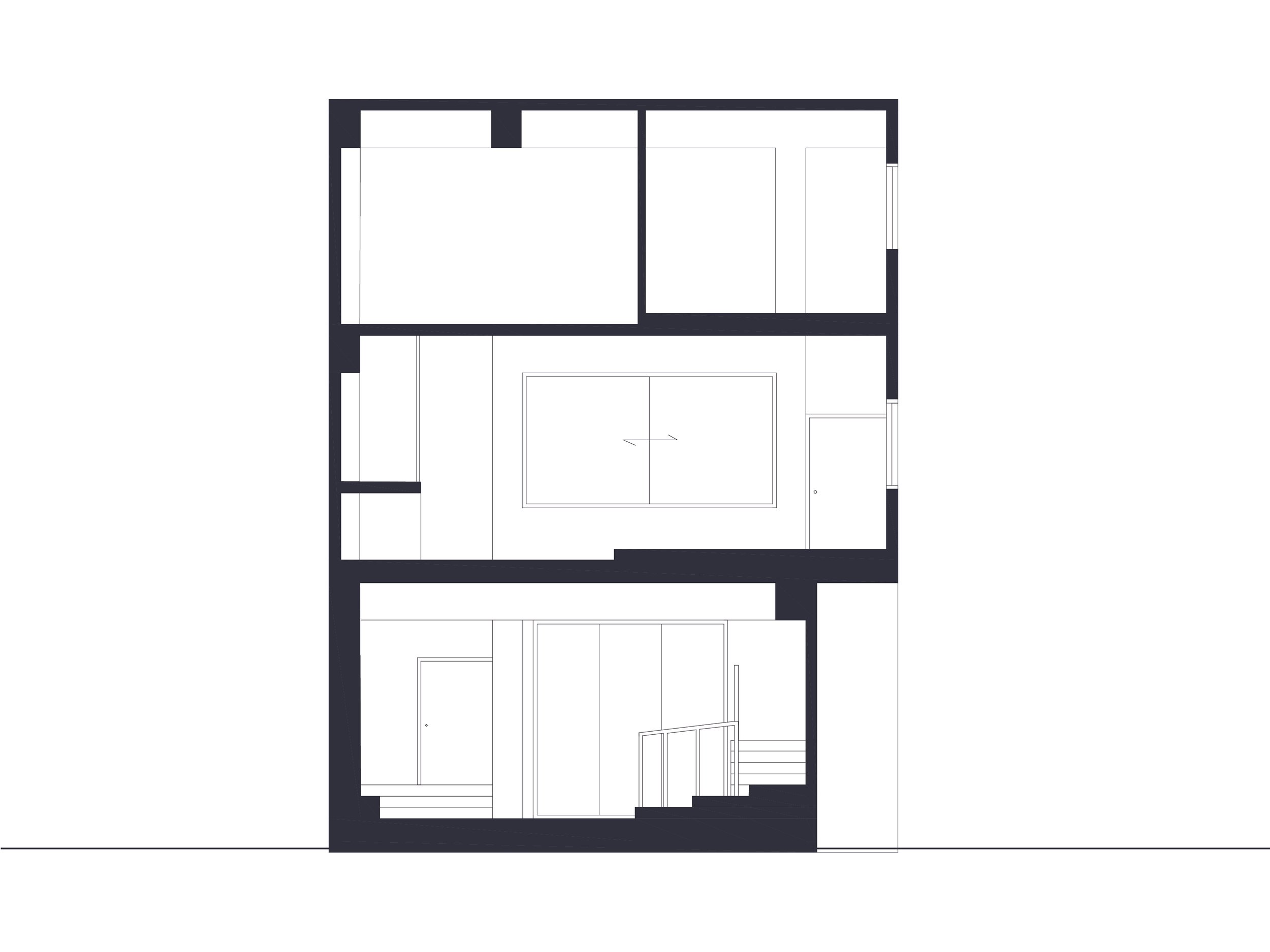

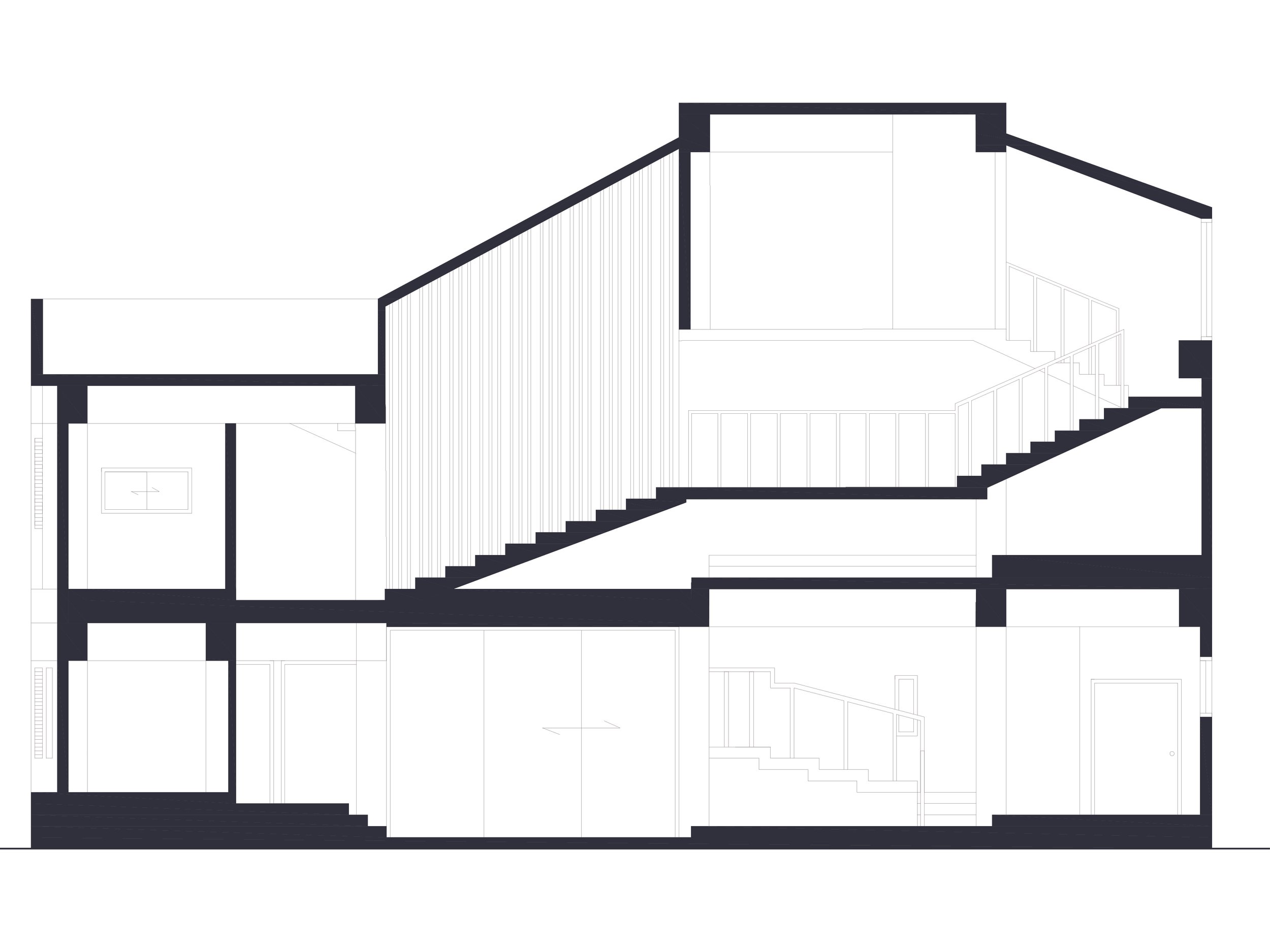

1/60 A-A’SECTION

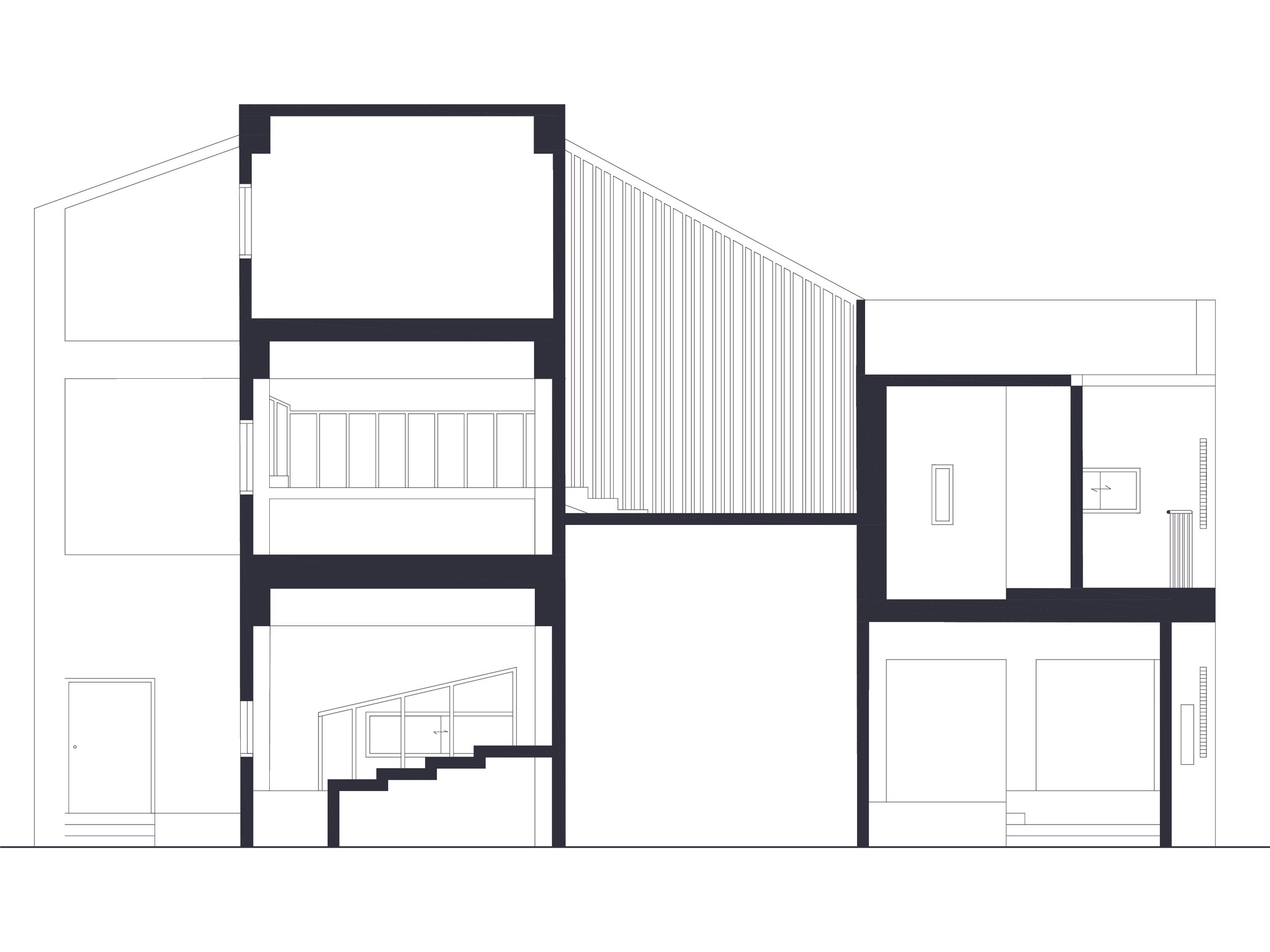

1/60 B-B’SECTION
1/60 C-C’SECTION

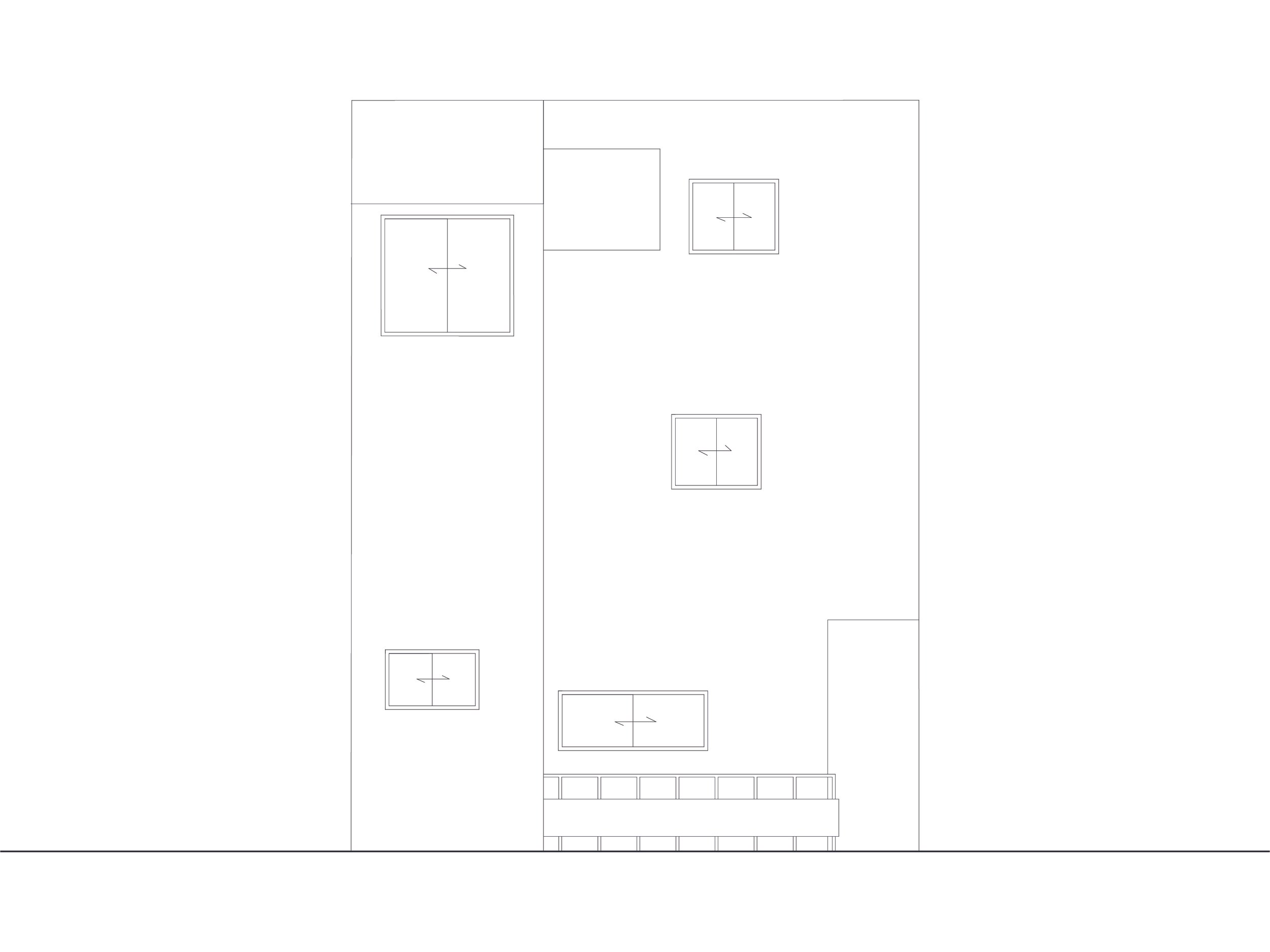

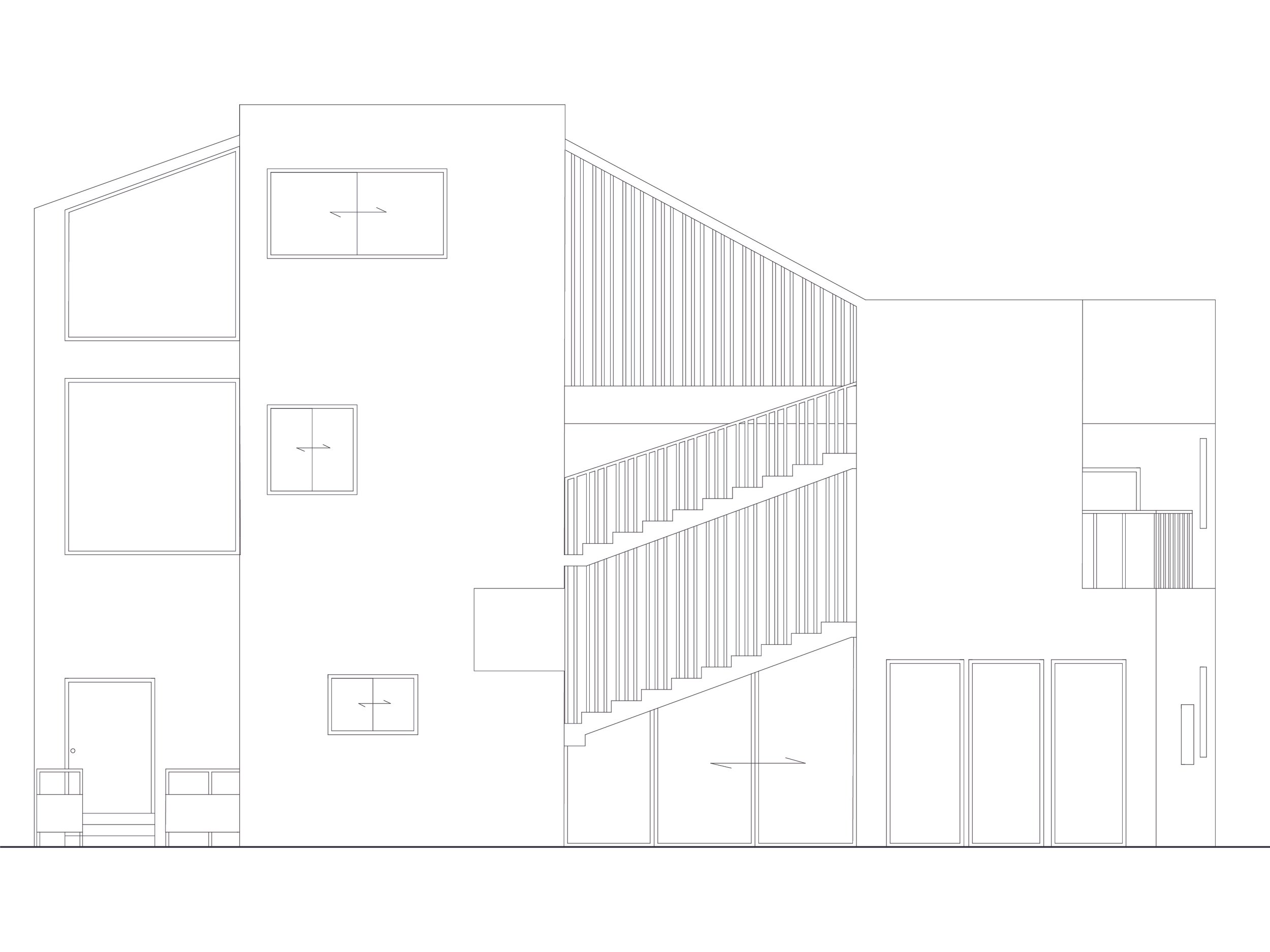

1/60 NORTH ELEVATION

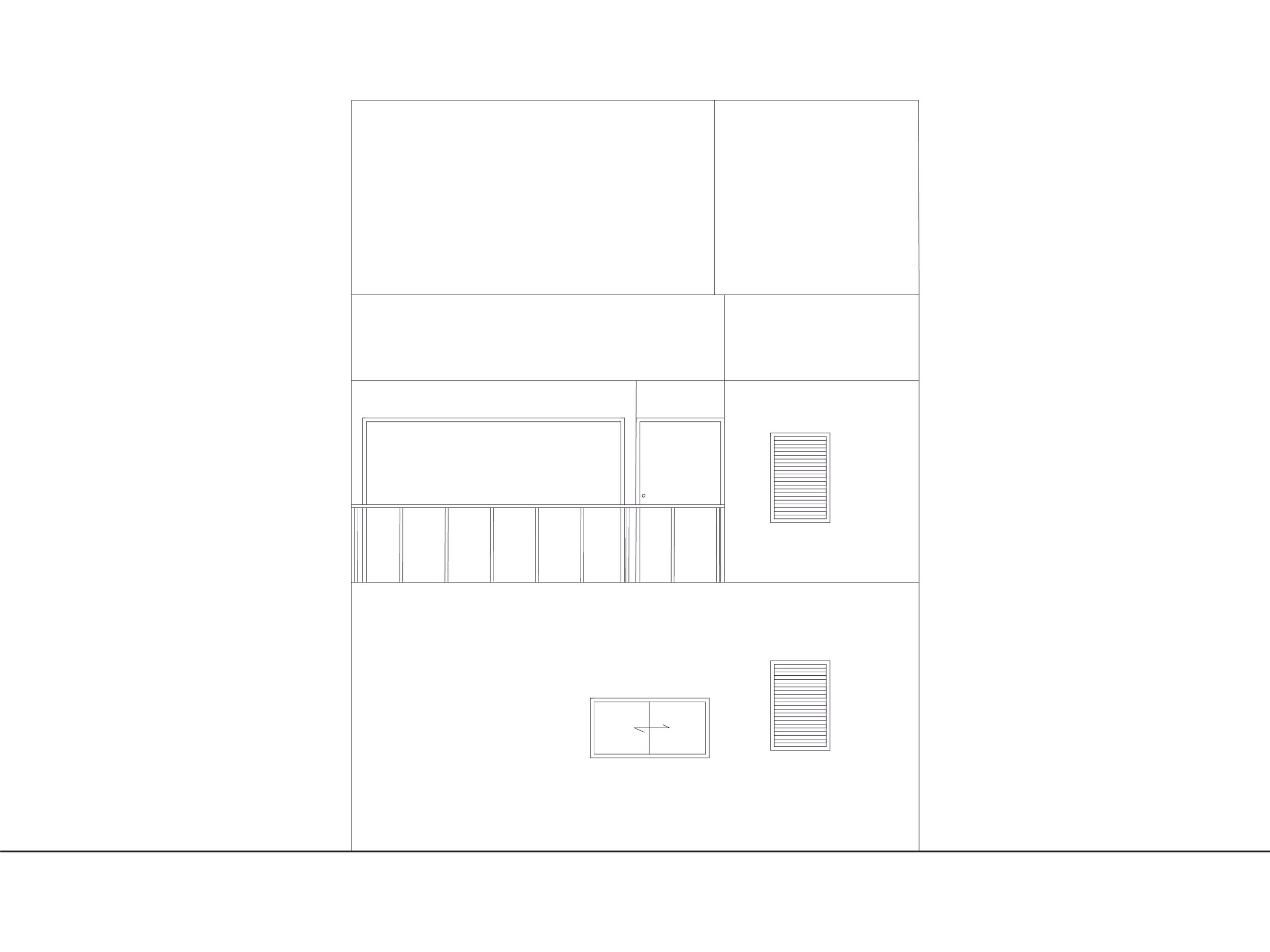

1/60 SOUTH ELEVATION

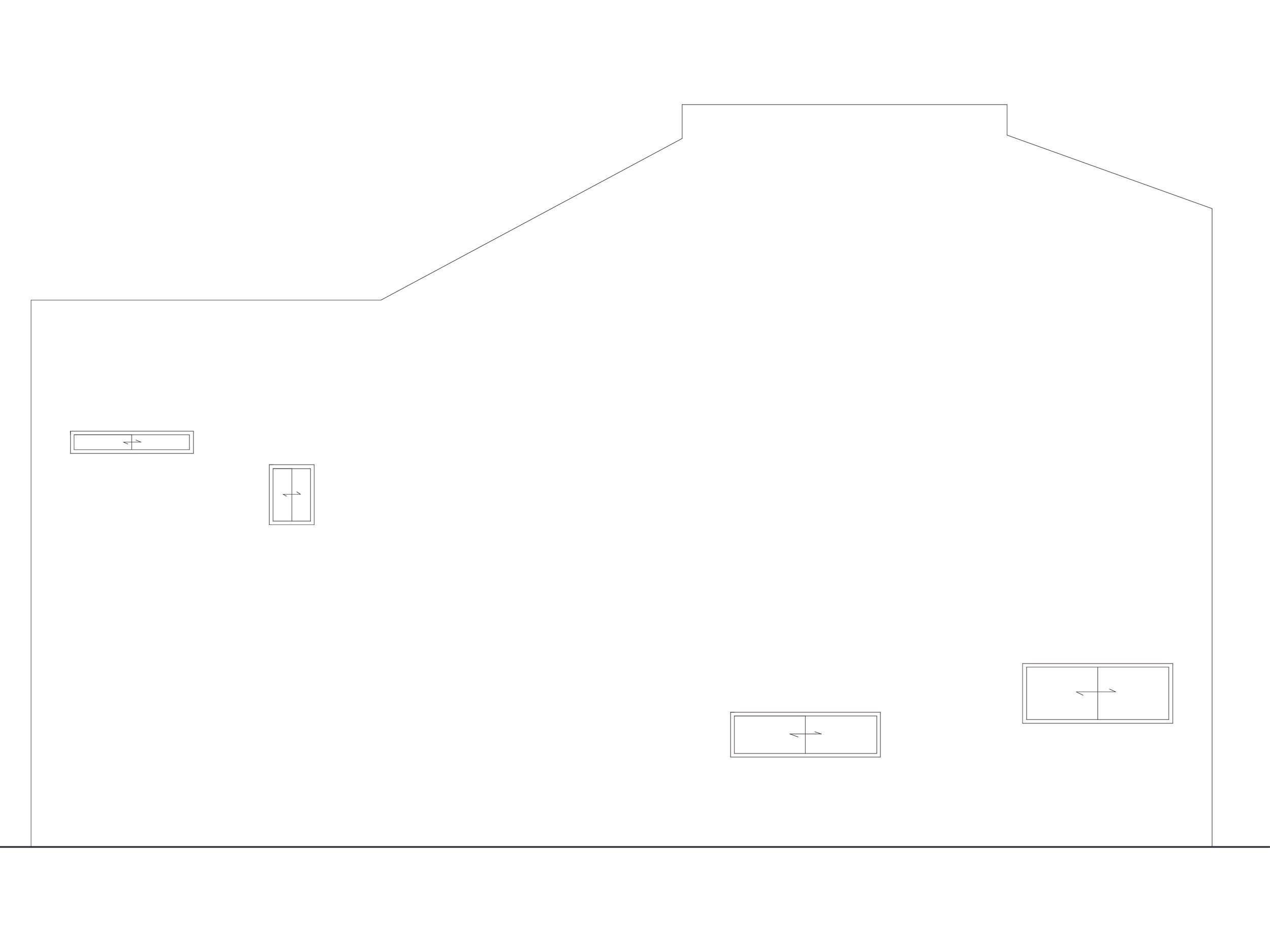

1/60 EAST ELEVATION
1/60 WEST ELEVATION

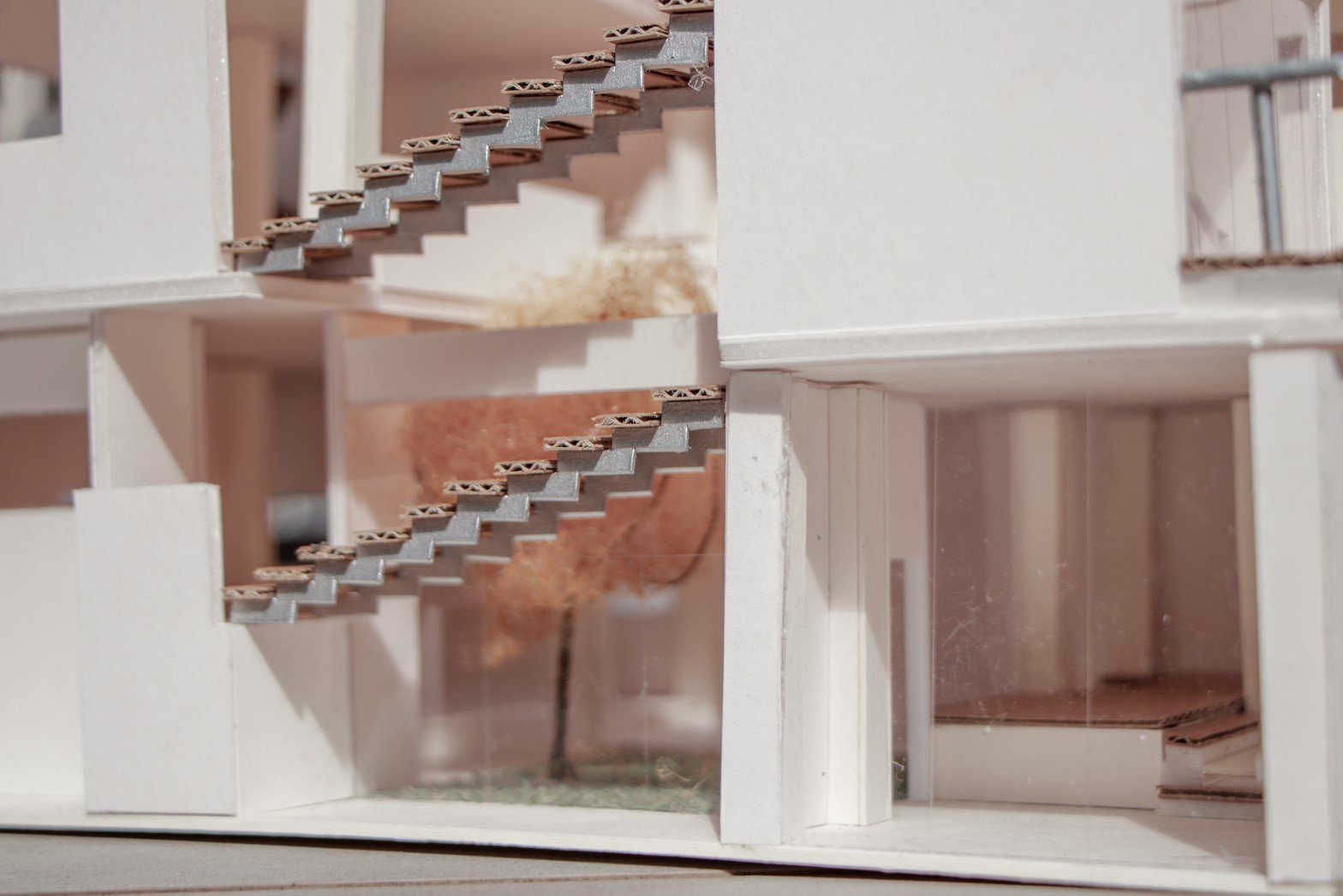

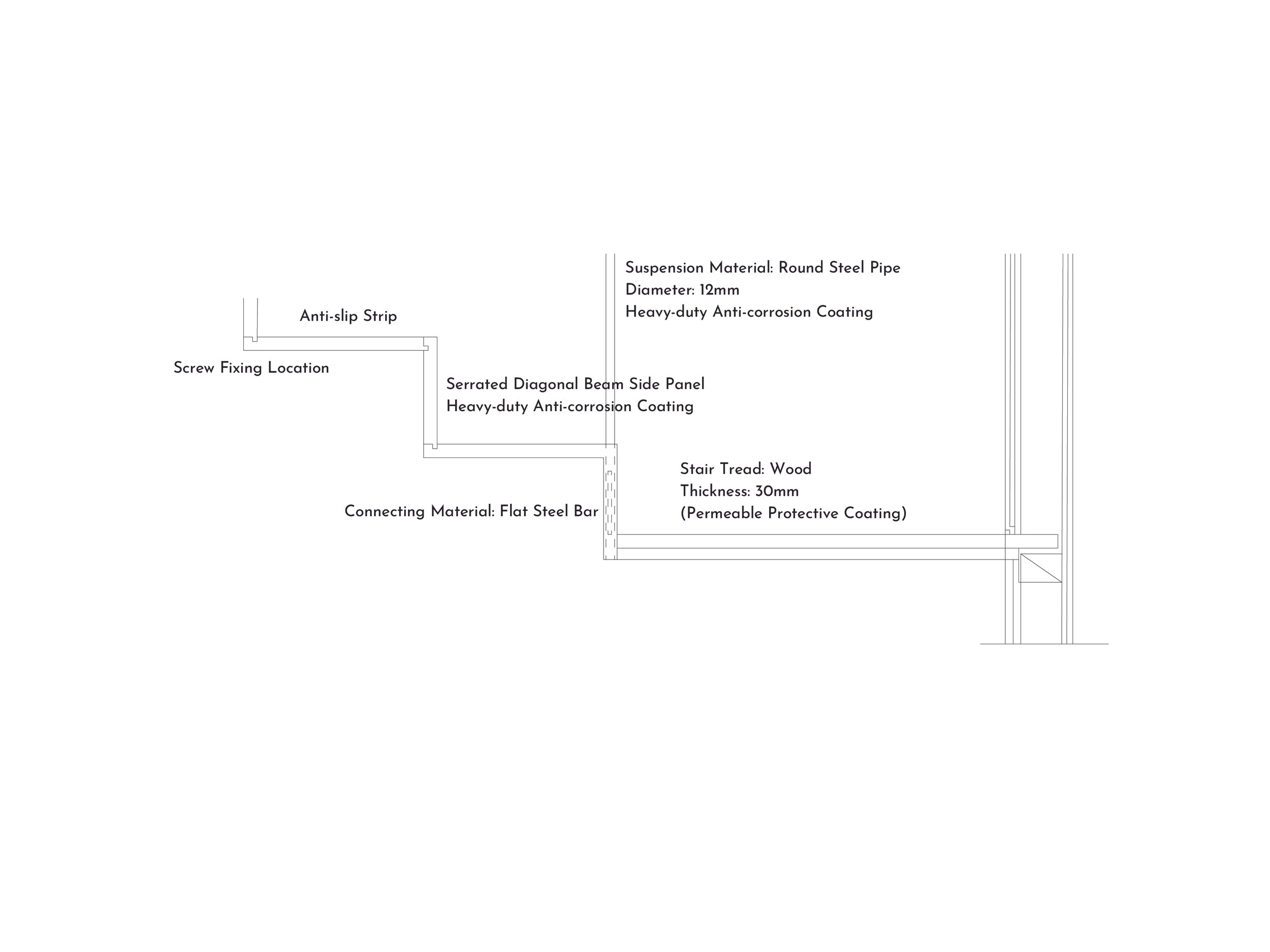

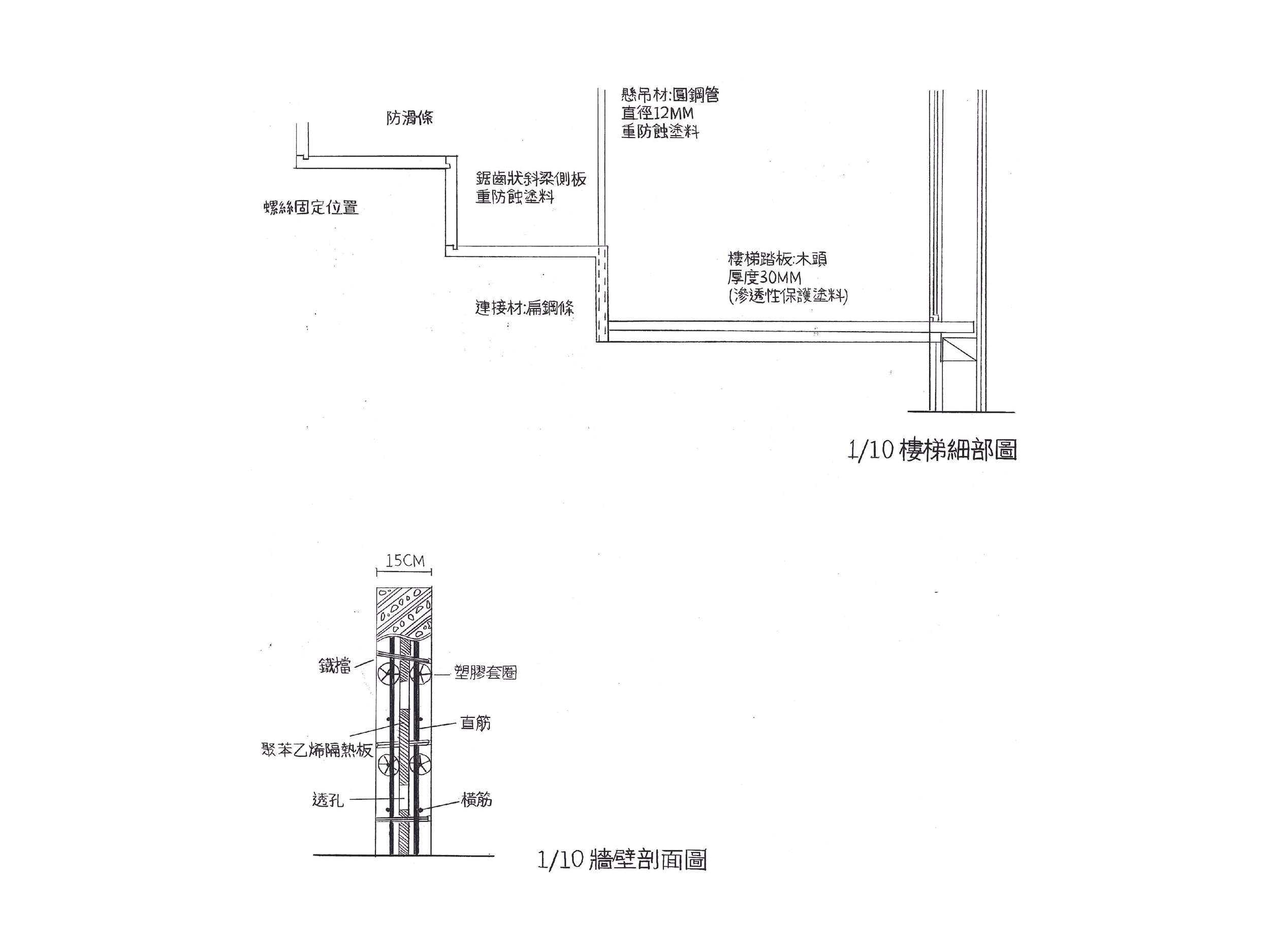

1/10 Stair Detailed

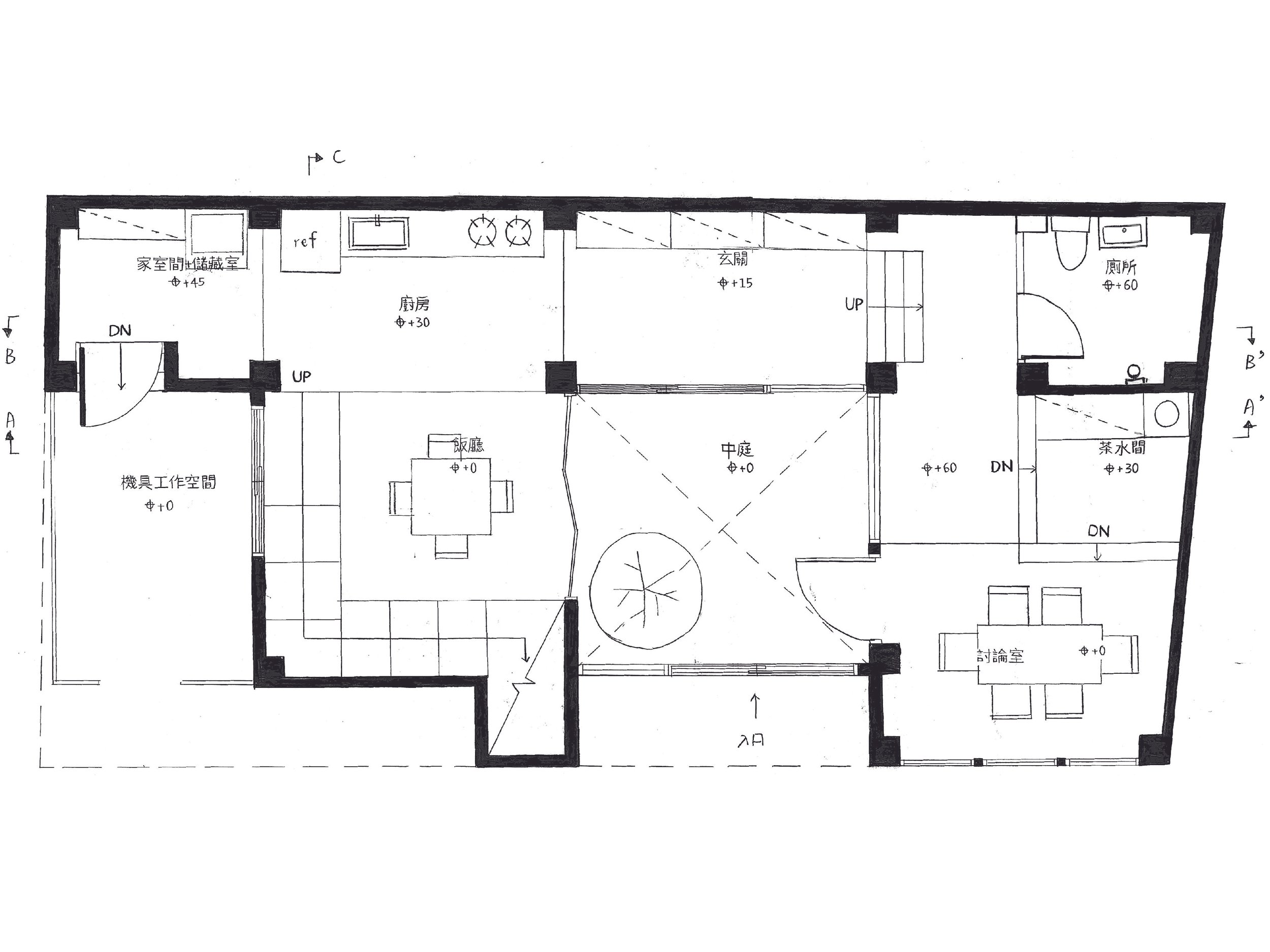

1/60 1F PLAN (HAND-DRAWING)

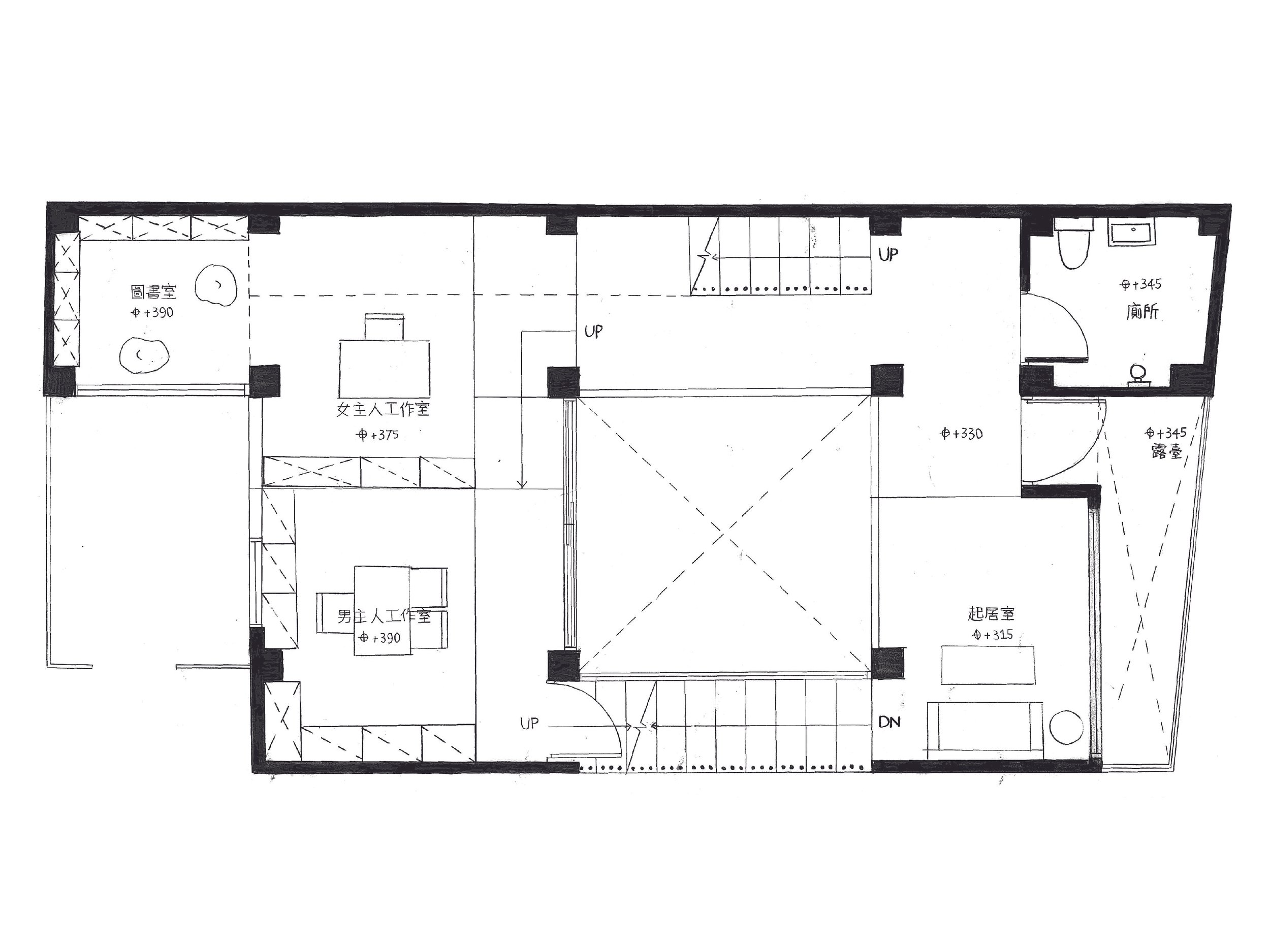

1/60 2F PLAN (HAND-DRAWING)

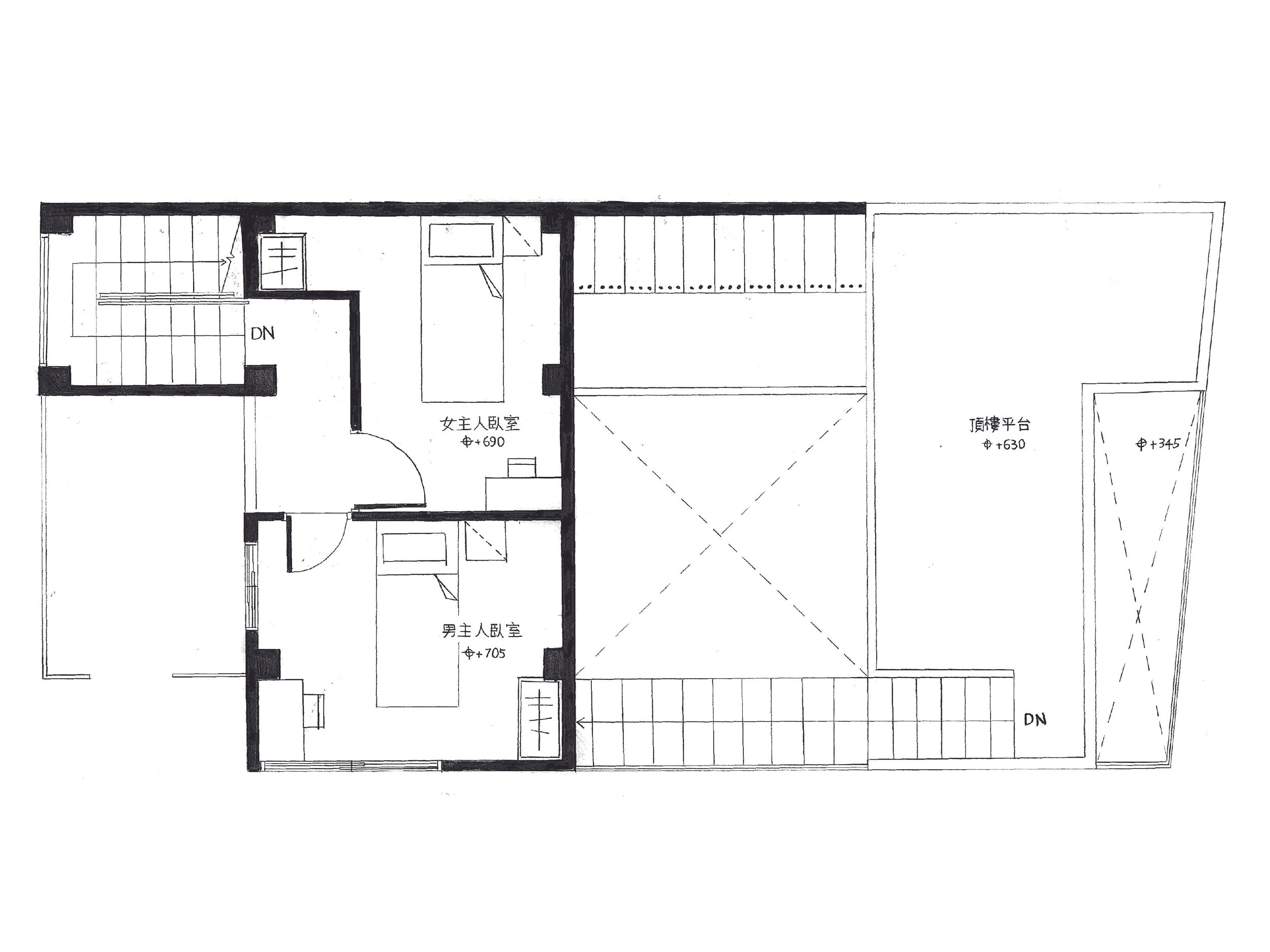

1/60 3F PLAN (HAND-DRAWING)

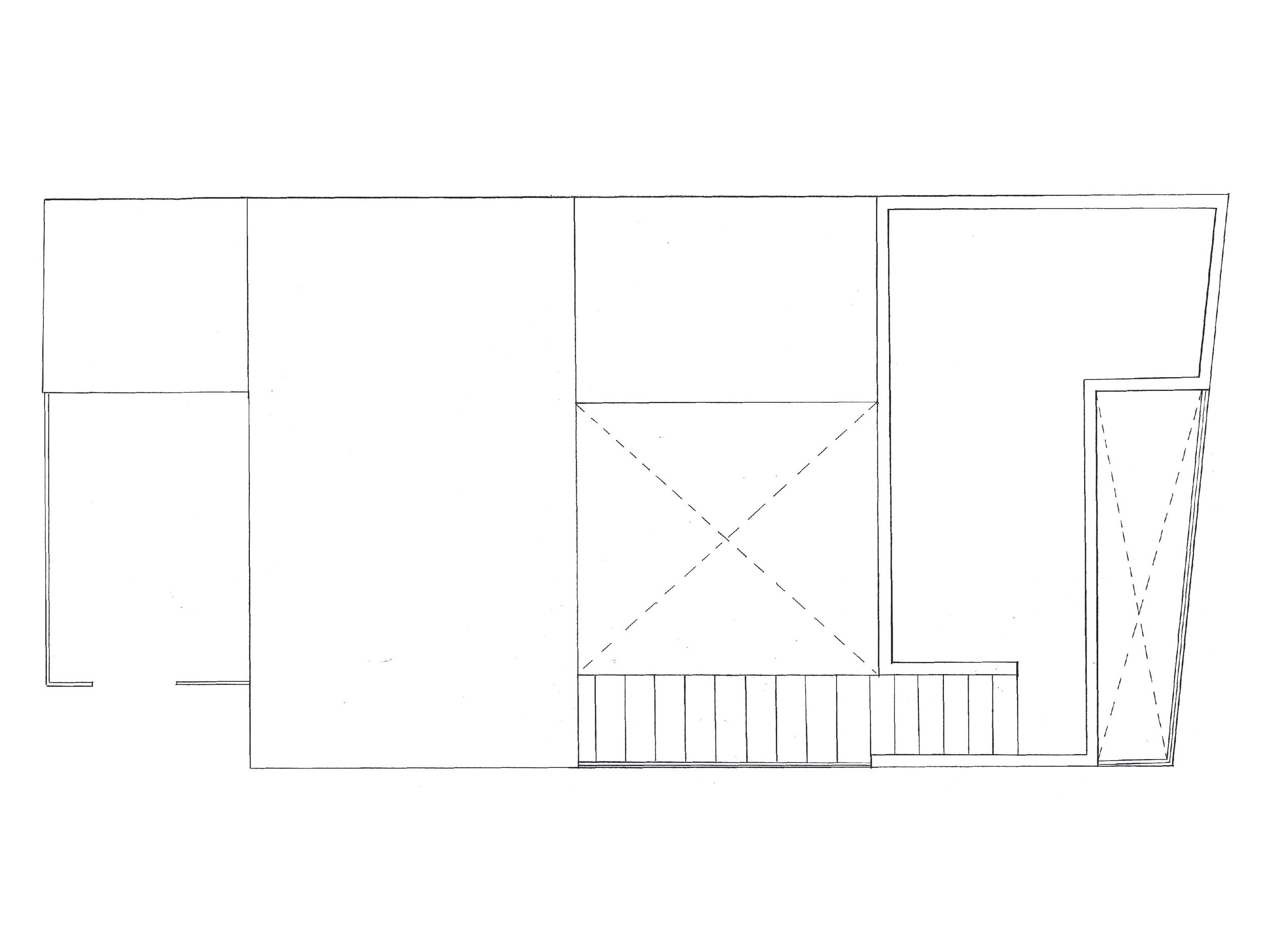

1/60 RF PLAN (HAND-DRAWING)
1/60 A-A’ SECTION (HAND-DRAWING)

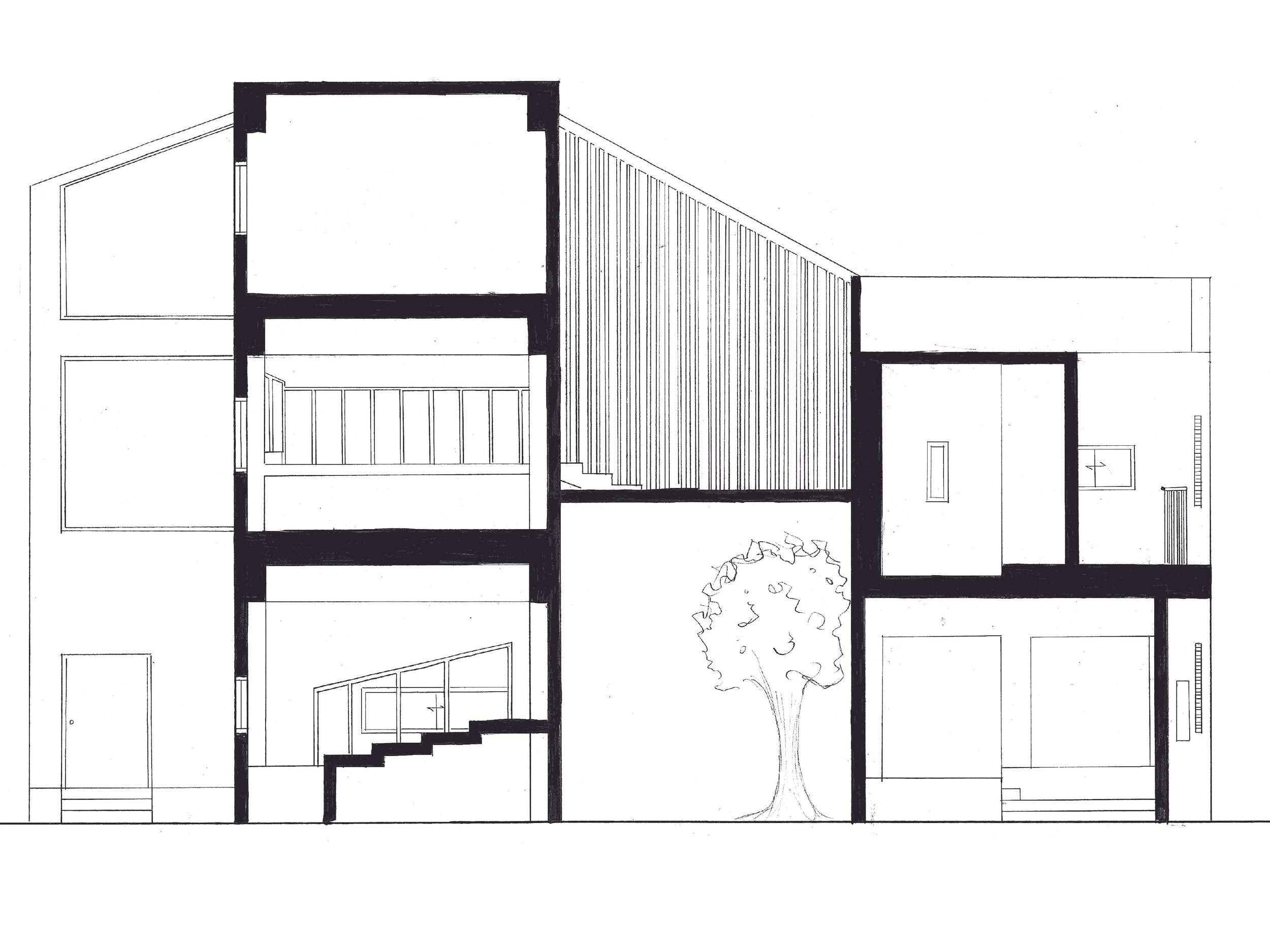

1/60 B-B’ SECTION (HAND-DRAWING)

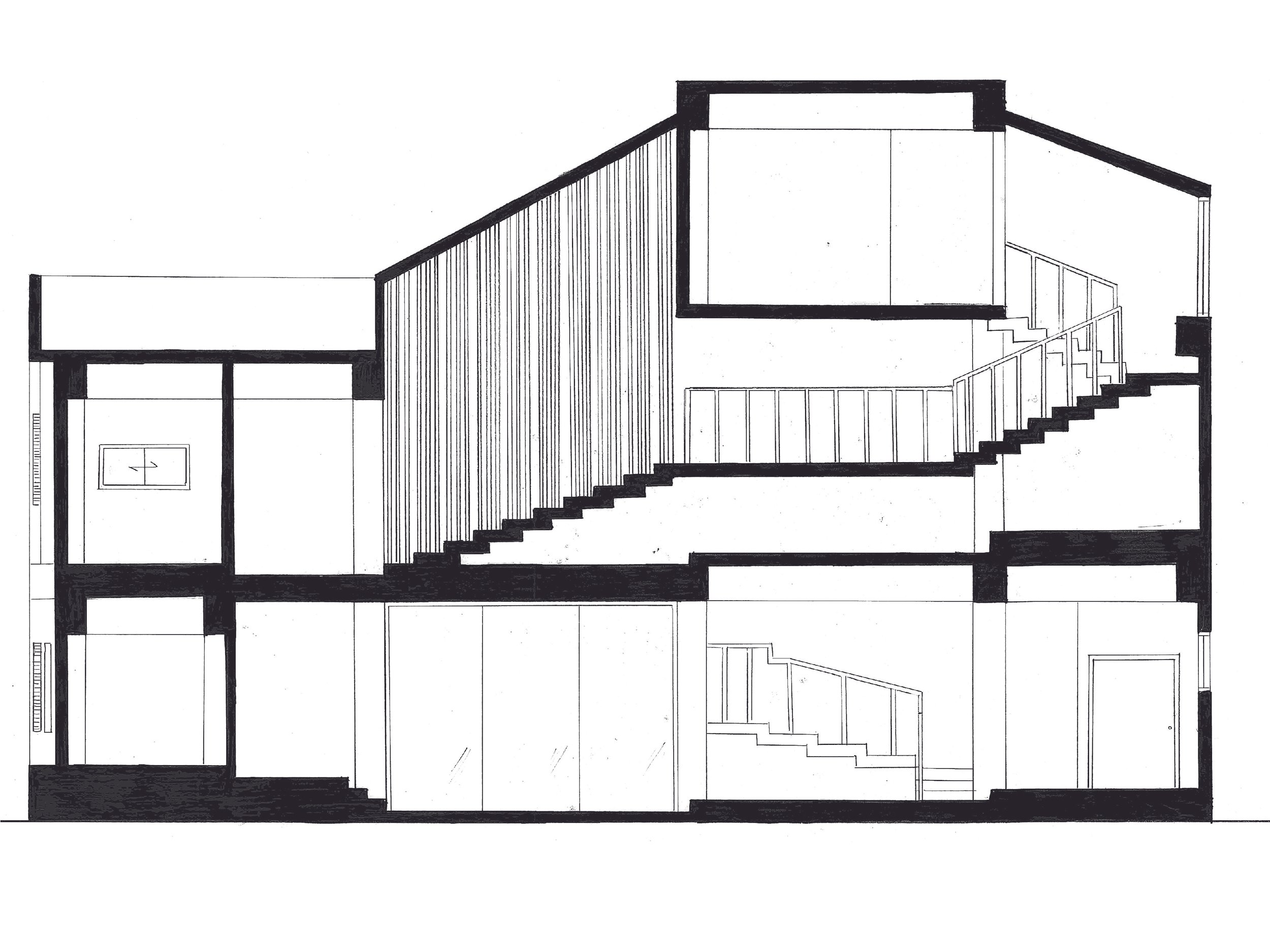

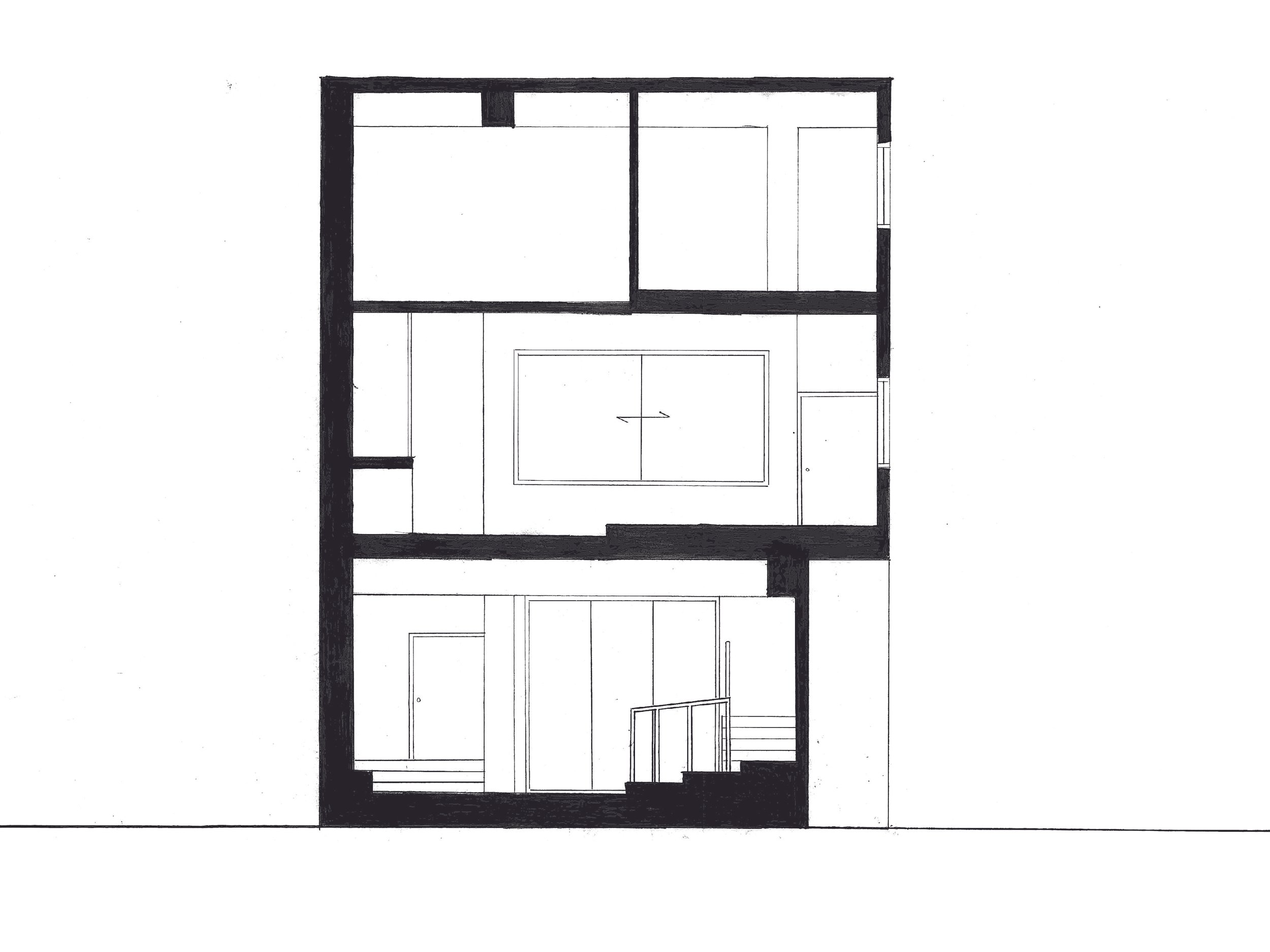

1/60 C-C’ SECTION (HAND-DRAWING)
1/60 NORTH ELEVATION (HAND-DRAWING)

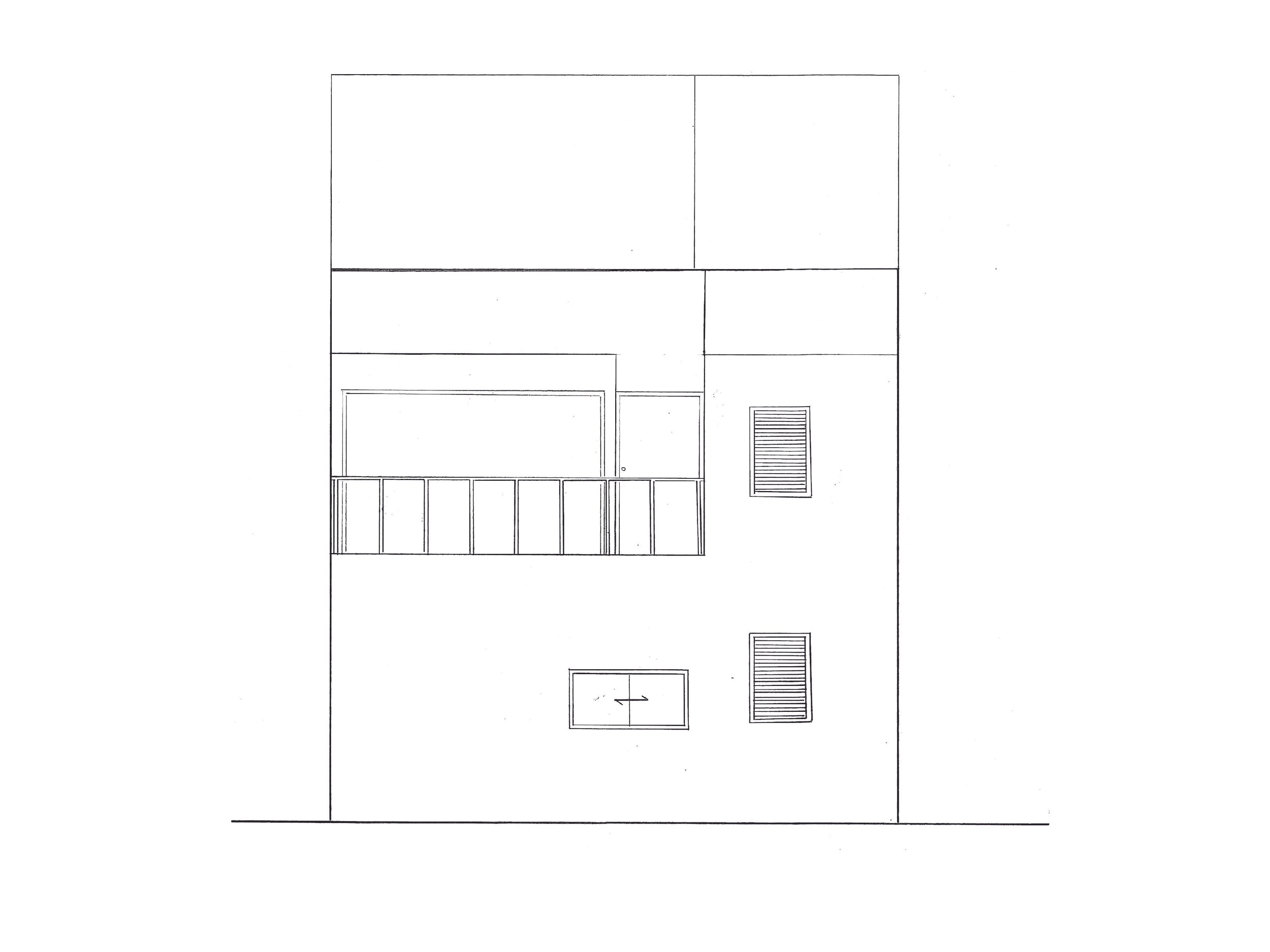

1/60 SOUTH ELEVATION (HAND-DRAWING)

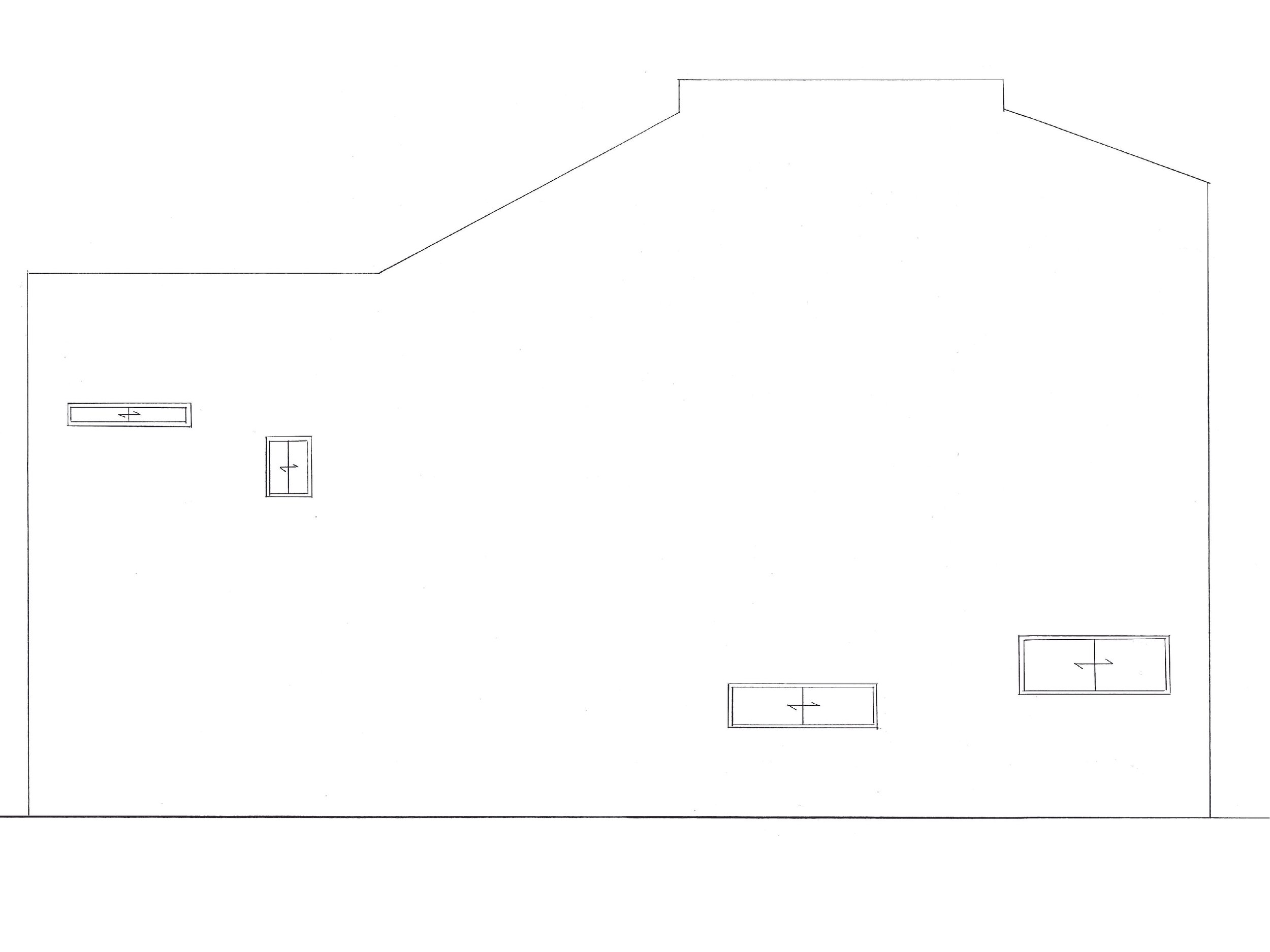

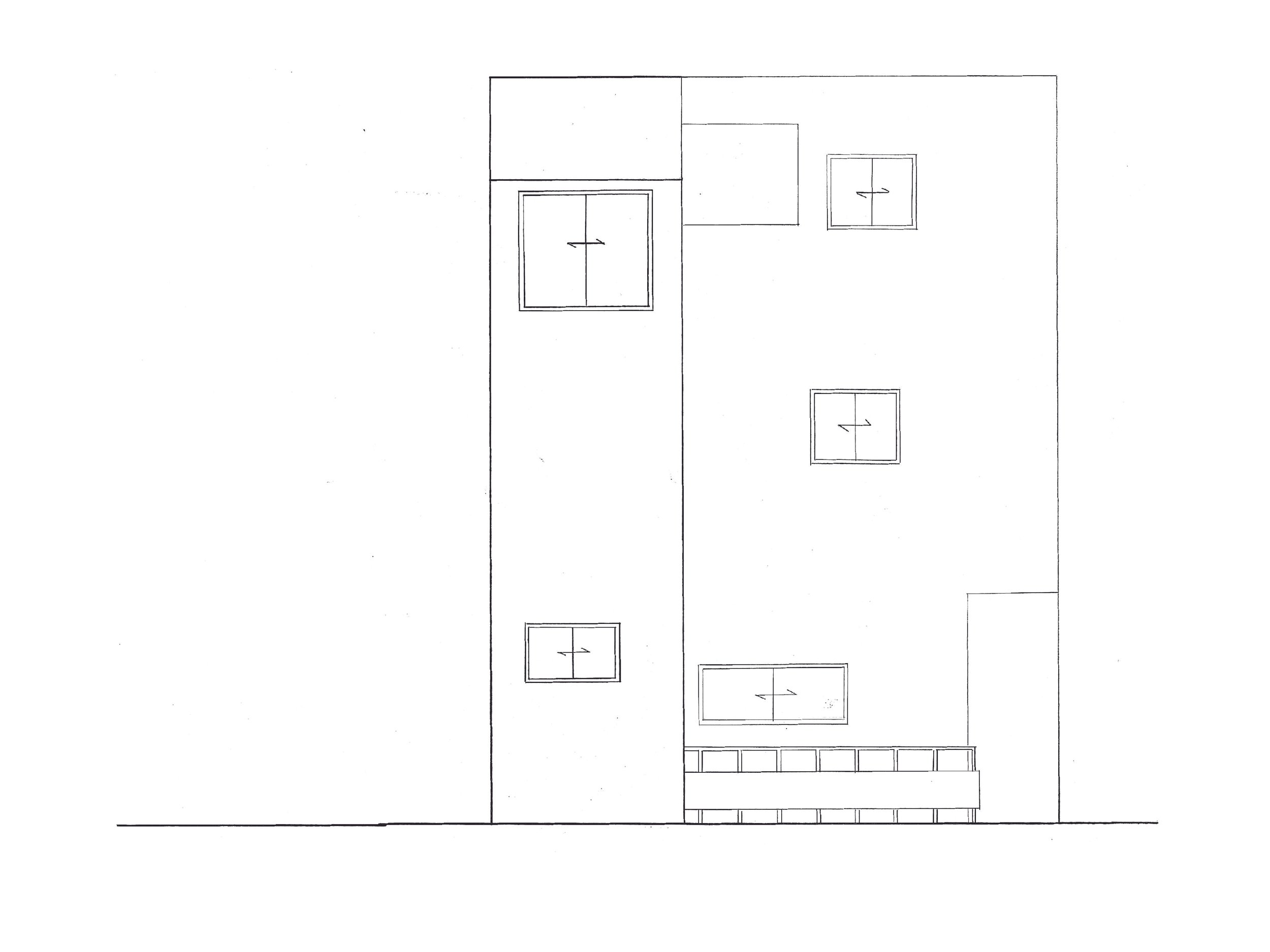

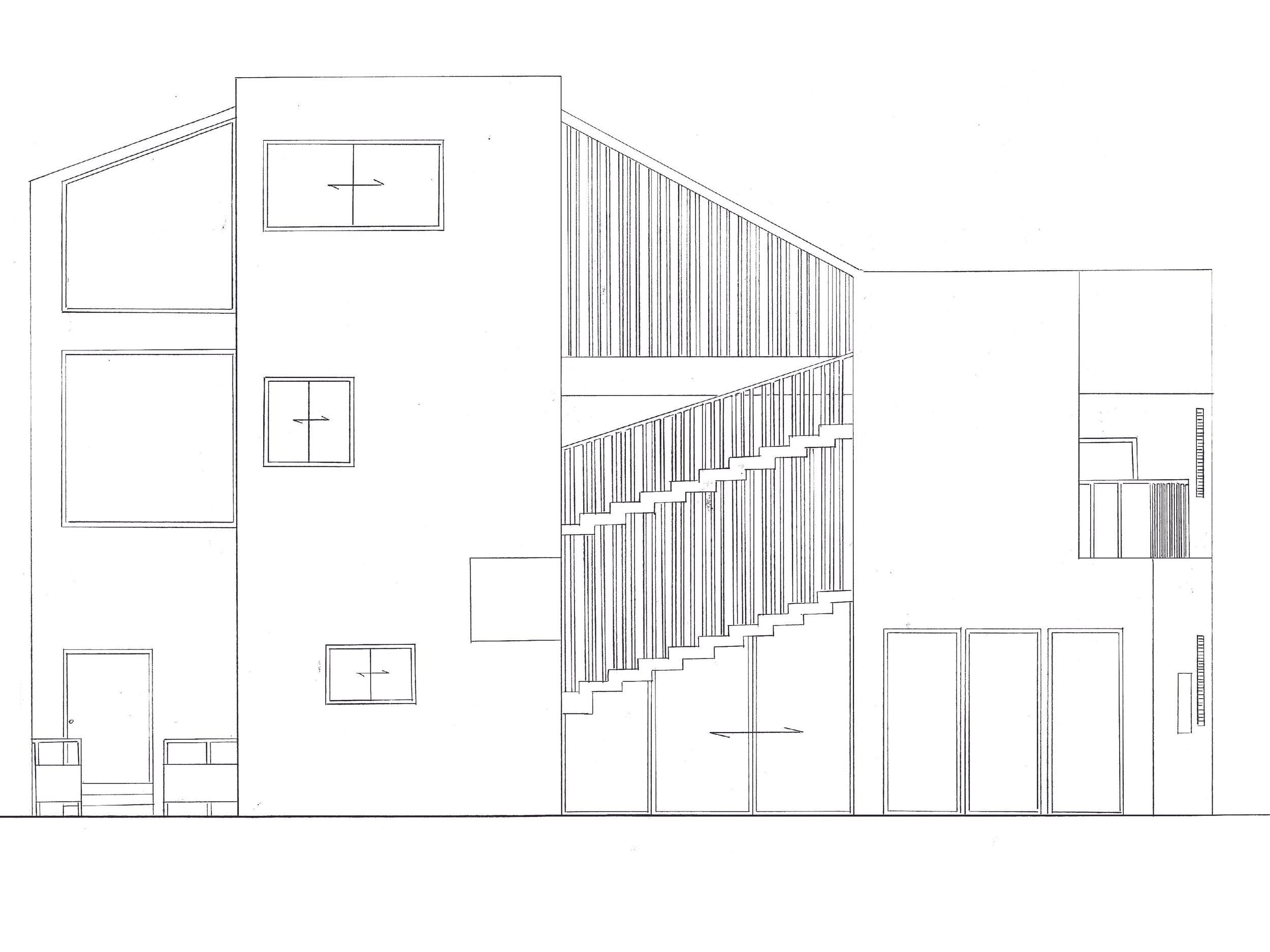

1/60 EAST ELEVATION (HAND-DRAWING)
1/60 WEST ELEVATION (HAND-DRAWING)
DETAILED (HAND-DRAWING)
